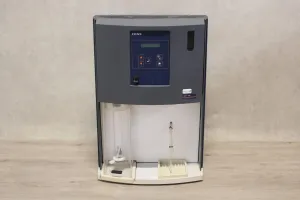

Foss Kjeltec 2200 Auto Distillation Unit

The Foss Kjeltec 2200 Auto Distillation Unit is designed for efficient and rapid nitrogen analysis with an analysis time of 3.5 minutes for 30 mg N and 6.5 minutes for 200 mg N. The unit boasts a distillation capacity of approximately 40 ml/min and a measuring range from 0.1 to 200 mg N. It delivers high reproducibility with a 1% RSD, including the digestion step, and offers impressive recovery rates of 99.5% for nitrogen levels between 1 and 200 mg. The drain tube capacity is 200 ml disbursed in just 2 seconds. Reagent pump volumes range from 0 to 150 ml in 10 ml increments, with a delay option between 0 and 999 seconds. The SAfE patented system operates within a 0 to 15-second range. Water usage is optimized at 2 l/min at a water temperature of 30°C during general operations, and 1 l/min at 15°C during distillation. The unit's dimensions are 530 x 440 x 760 mm, and it weighs 35 kg, making it a robust yet compact option for a laboratory setting.
