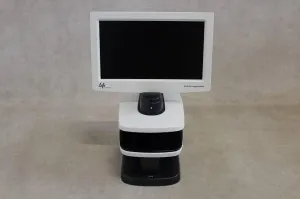

FLOID CELL IMAGING STATION LIFE TECHNOLOGY

The FLoid Cell Imaging Station is an affordable, user-friendly imaging solution for the quick detection and verification of fluorescently-labeled samples. The FLoid Cell Imaging Station captures transmitted light and three-color fluorescent images of your cells and samples right at your benchtop. You do not need to be specially trained or have dedicated staff to operate it. An uncomplicated user interface, streamlined image acquisition process, and real-time, multicolor display allow even imaging novices to produce high-quality images with a few mouse clicks.

Cell Data: 3-Color Detection

Color: Green, Red, Blue

Data Outputs: JPG Files, PNG Files, BMP Files, TIFF Files

Detection Method: Fluorescent

Display: Adjustable tilt, 15-inch color

Emission Wavelength: 446/33 (Blue), 532/59 (Green), 646/68 (Red)

Excitation Wavelength: 390/40 (Blue), 482/18 (Green), 586/15 (Red)

Filter Type: FITC, Texas Red, DAPI

For Use With: All fluorophores compatible with excitation and emission filters

Format: Slide(s), Cell Culture Dish, Cell Culture Plate (Multi-Well), Cell Culture Flask (T75), Petri Dish, Coverslip(s)

Laser Features: LED based adjustable intensity (50,000 hour life)

Magnification: 460X (optical) to 1840X (with digital zoom)

Memory: 2 Gb USB

Objectives: Numerical Aperture = 0.45, Fixed 20X Plan Fluorite, Working Distance = 5.9 mm

Stage: Open-Stage Platform for Most Cell Vessels

Camera Type: 1.3 Megapixels, Monochrome, HAD CCD, 1/3 inch

Lighting Type: LED

Resolution: Image resolution – 1296 x 964 pixels, Display resolution – 1366 x 768 pixels

Dimensions (WxHxD): 400 x 540 x 350 mm

Weight: 12.7 kg
