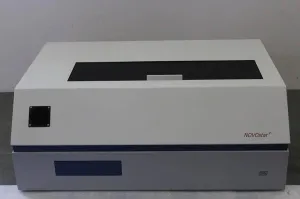

BMG Labtechnologies NOVOstar Microplate Fluorometer

Detection Modes: Fluorescence Intensity – including FRET Fluorescence Polarization Luminescence (flash and glow) Time-Resolved Fluorescence – including DELFIA UV/Vis absorbance

Measurement Modes: Top and bottom reading Endpoint and Kinetic measurements Sequential Multi Excitation measurements Sequential Multi Emission measurements Simultaneous Dual Emission measurements Ratiometric measurements Well Scanning

Microplate Formats: 6 to 384-well plates, user-defi nable Microplate Carrier: Accomodates two plates: one reagent plate and one measurement plate Light Source: High energy xenon flashlamp Detectors: Side window photomultiplier tube Optical Filters: Excitation and emission filter wheels for 8 filters each Spectral Range: 240 to 740 nm or 240 to 900 nm

Sensitivity: FI: < 1 fmol / well Fluorescein FP: < 5 mP standard deviation at 1 nM fluorescein TRF: < 70 amol/well Europium LUM: < 30 amol/well ATP, DLReady certified ABS: Dynamic range: ±0.000 – 4.000 OD, Reproducibility: ±0.010 OD for 0 – 2 OD range

Read Times: Flying mode: 14 s (96), 27 (384) Reagent Injection: Up to 2 built-in reagent injectors Injection at measurement position (6 to 384-well) Individual injection volumes for each well (3 to 350 µL) Variable injection speed up to 420 µL / s Up to four injection events per well Reagent back flushing

Pipettor System: Injection volume: 0.5 µl – 100 µl Individual injection volumes for each well Variable injection speed Plate-to-plate transfer + 3 reagent stations + washing station

Shaking: Linear, orbital, and double-orbital with user-defi nable time and speed Gas Vent: System to inject an atmosphere or to pull a vacuum into the reader Incubation: +5°C above ambient up to 45°C or 60°C

Equipped with the following filters: Em: 510 – 520 – 530 – 590 – 630 nm Ex: 355 – 390 – 405 – 436 – 440 – 485 – 510 – 544 nm

Dimensions (h x w x d): 300mm x 780mm x 530mm Weight: 55 kg

230V / 50-60Hz
