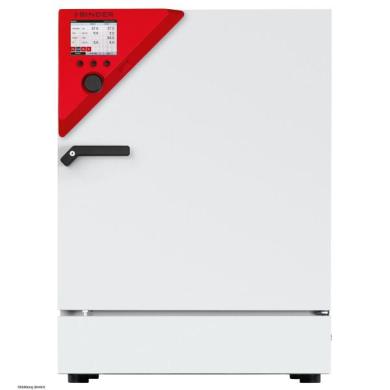

BINDER CB160 150L CO2 O2 N2 Incubator Brutschrank Inkubator + Sterilization

Manufacturer: Binder

Model: CB 160 E6.1 CO² incubator with sterilizable sensor, 0² Control, divided inner doors (4 doors)

P/N: 9140-0102 (CB160-230V-GO)

Description:

The new CB series offers optimal growth conditions for cell cultures. The ANTI.PLENUM concept, the 180 °C sterilization routine with the world's first sterilizable CO2 sensor and other unique BINDER technologies meet the highest requirements for best possible cell growth and maximum sample safety in the premium class of BINDER CO2 incubators.

Features:

- VENTAIRTM air jacket system
- Temperature range: 7 °C above room temperature up to 60 °C
- BINDER controller with LCD color display for simultaneous display of all important parameters (temperature, % CO2, % O2 concentration, humidity) and user-friendly push button/rotary knob
- Intuitive menu guidance
 - Electronic chart recorder
 - Variety of options for graphic display of process parameters
 - Real-time clock
- Hot air sterilization at 180 °C
- with sterilizable built-in CO2 sensor
- Drift-free infrared CO2 measurement system
- CO2 introduction through patented gas mixing nozzle
- ANTI.PLENUM Design to avoid contamination of critical fixturesPermadryTM System
- PermadryTM system, double pan humidification system with defined condensation site for condensate-free interior walls
- Seamless deep-drawn inner chamber made of stainless steel with round corners and integrated shelf support system
- Electronic error self-diagnostic system with visual and audible alarms, as well as potential-free contact for central monitoring
- Independent temperature safety device class 3.1 (DIN 12880) with visual and audible temperature alarm
- Tightly-fitted inner glass door made of safety glass
- Ethernet interface for communication software
- APT-COMTM DataControlSystem
- Three perforated shelves made of stainless steel
- Stackable units with new stacking adapter
- 2-point door lock

Specifications:

BINDER cooling incubator: CB 160
Exterior dimensions: (WxHxD) 680 x 920 x 715 mm
Number of doors: 1
Inner glass doors: 1
Interior dimensions: (WxHxD) 500 x 600 x 500 mm
Interior volume: 150 L
Racks (number standard/max.): 3 / 6
Dimensions shelves width x depth: 495 x 444 mm
Load per rack: 10kg
Permitted total load: 30kg
Weight (empty): 107kg

Temperature Data
Temperature range: 7°C above ambient temperature to 60°C
Temperature variation at 37°C: 0,3°C
Temperature fluctuation at 37°C: 0,1°C
Recovery time after door was opened for 30 sec. at 37°C: 4 min
Humidity data:
Humidity: 90-95% r.h. (±2 )
CO2 data
CO2 range: 0-20 Vol.-% CO2
Setting accuracy: 0,1 Vol.-% CO2
Recovery time after door was opened for 30 sec.
at 5.0 vol. % CO2 (min.): 5 min
CO2 measurement: IR
Connection hose nozzle for CO2 for hose with internal diameter: 6 mm
O2 data
O2 range: 0,2 - 95 Vol.-% O2
Setting accuracy: 0,1 Vol.-% O2
Recovery time after door was opened for 30 sec.
at 1.0 vol. % O2: 12 min
at 5.0 vol. % O2: 12 min
O2 measurement: ZrO2
Connection hose nozzle for O2 / N2 for hose with internal diameter: 6 mm

Itemds delivered:

- Binder CB 160 CO² Incubator
- 3 Shelves
- Instruction Manual

The Binder CB 160 CO² Incubator is new and has never been used in lab environment.
Ready for it's first duty.
