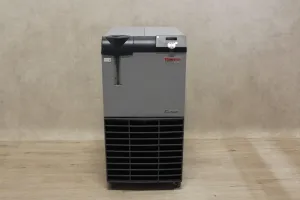

Thermo Fisher ThermoFlex 5000 Recirculating Chiller

Temperature range: 16˚C to 24˚C Flow rate: 12 L/min Pump pressure: max. 3.5 bar Reservoir capacity:  (more)5L Cooling capacity (at 20˚C): 2.7kW Outer dimensions (WxDxH):  430 x 470 x 700 mm Weight: 55 kg

Operating temperature range: 0°C to 40°C Temperature stability: ±0.5°C Temperature setting resolutio (more)n: 0.1°C Temperature display resolution: 0.1°C Permissible ambient temperature: 5°C to 40°C Maximum return temperature: 80°C Cooling capacity (medium: Water glycol): 20°C: 1 kW 10°C: 0.7 kW 5°C: 0.55 kW 0°C: 0.35 kW Filling volume: 295 g Coolant: R134a Pump capacity flow rate: 23 l/min Pump capacity discharge pressure: 1 bar Dimensions (WxDxH): 375 x 490 x 640 mm Filling volume: 7 to 9.5 l Weight: 45 kg

LAUDA Variocool: Versatile circulation chillers from 1200W to 10 kW used between -20°C and +80°C to  (more)dissipate process heat in laboratories, small plants or production. LAUDA Variocool circulation chillers convince with their space-saving design and the versatility offered by a wide variety of options. They are circulation thermostats suitable for use with non-flammable heat transfer liquids within a moderate temperature range. The new control panel design and color TFT display make making changes very simple and intuitive. Various options in power kW, pump pressure / flow rate and tank size offer a wide range of choice for the customer, adapting better to his needs. Contact us to understand the model that best suits your needs. All models (except VC 600) are available in the air-cooled or water-cooled (W) versions and equipped with fixed swivel castors. High performance circulation chillers starting with the VC 5000 are available with sound insulation or outdoor installation option. Cooling performance of the Variocool VC 3000 model (measured with ethanol): - at 20°C, 3.00 kW - at 10°C, 2.40 kW - at 0°C, 1.68 kW - at -10°C, 1.03 kW - at -20°C, 0.60 kW Notable features - Adjustable bypass for pressure limitation - Top filling opening, drain cock on the back - Integrated programmer with 150 segments, divisible into 5 programs - Electronic level indicator with low level alarm - SmartCool system for energy-saving digital control of cooling, including automatic compressor control - Temperature graphs on display Examples of specific applications - Refractometer - Polarimeter - Disposable bioreactors - Extruder for food production - Micro reactors - Reactive control in chemical / pharmaceutical environments - Climatic chambers - Spatial simulation - Electric mobility; battery test - Test benches - Stress test - Crystallization regulation - Lyophilization - Micro structures - Painting plants Accessories included Nozzles for pump connections; screw cap. Various options in power (kW), pump pressure/flow rate and tank size offer a wide range of choice for the customer, adapting better to his needs. Contact us to understand the model that best suits your needs. Simple control panel with large TFT display with lots of information. Front panel of the LAUDA Variocool easily removable for fast maintenance and modifications. Easily upgradeable with different interfaces (analog module, contact module, RS 232/485, Profibus, Ethernet-USB module). USB Type B Interface. Connections located on the back of the Variocool: inlet/outlet pump connection; bypass adjustments. Large frontal pressure display. Pump performance graph of LAUDA Variocool heating chillers. Overview of the technical characteristics of the Variocool LAUDA models. TECHNICAL VISUALIZATION 1 - Filler nozzle with cover 2 - Control panel 3 - Pressure gauge 4 - Mains switch 5 - Alarm output and module bays 6 - Front panel (ventilation openings only in case of air-cooled devices) 7 - Ventilation openings (on both sides) 8 - Four castors (front castors with locking brake) 1 - Pump connection, outflow 2 - Bypass adjusting wheel 3 - Pump connection, return flow 4 - Drain tap 5 - Connecting sleeve for water cooling outlet (only available for water- cooled devices) 6 - Connecting sleeve for water cooling intake (only available for water- cooled devices) 7 - Ventilation grid 8 - Rating label 9 - Power supply 10 - Fuses (up to and including VC 3000 (W)) 1 - Light sensor 2 - Pressure gauge 3 - Mains switch 4 - Entry key and arrow keys 5 - Soft keys (left and right) 6 - USB interface Type B (on the side of the control panel) 7 - TFT display

LAUDA Variocool: Versatile circulation chillers from 1200W to 10 kW used between -20°C and +80°C to  (more)dissipate process heat in laboratories, small plants or production. LAUDA Variocool circulation chillers convince with their space-saving design and the versatility offered by a wide variety of options. They are circulation thermostats suitable for use with non-flammable heat transfer liquids within a moderate temperature range. The new control panel design and color TFT display make making changes very simple and intuitive. Various options in power kW, pump pressure / flow rate and tank size offer a wide range of choice for the customer, adapting better to his needs. Contact us to understand the model that best suits your needs. All models (except VC 600) are available in the air-cooled or water-cooled (W) versions and equipped with fixed swivel castors. High performance circulation chillers starting with the VC 5000 are available with sound insulation or outdoor installation option. Cooling performance of the Variocool VC 10000 model (measured with ethanol): - a 20°C, 10.00 kW - a 10°C, 7.60 kW - a 0°C, 5.30 kW - a -10°C, 3.50 kW - a -20°C, 2.00 kW Notable features - Adjustable bypass for pressure limitation - Top filling opening, drain cock on the back - Integrated programmer with 150 segments, divisible into 5 programs - Electronic level indicator with low level alarm - SmartCool system for energy-saving digital control of cooling, including automatic compressor control - Temperature graphs on display Examples of specific applications - Refractometer - Polarimeter - Disposable bioreactors - Extruder for food production - Micro reactors - Reactive control in chemical / pharmaceutical environments - Climatic chambers - Spatial simulation - Electric mobility; battery test - Test benches - Stress test - Crystallization regulation - Lyophilization - Micro structures - Painting plants Accessories included Nozzles for pump connections; screw cap. Various options in power (kW), pump pressure/flow rate and tank size offer a wide range of choice for the customer, adapting better to his needs. Contact us to understand the model that best suits your needs. Simple control panel with large TFT display with lots of information. Front panel of the LAUDA Variocool easily removable for fast maintenance and modifications. Easily upgradeable with different interfaces (analog module, contact module, RS 232/485, Profibus, Ethernet-USB module). USB Type B Interface. Connections located on the back of the Variocool: inlet/outlet pump connection; bypass adjustments. Large frontal pressure display. Pump performance graph of LAUDA Variocool heating chillers. Overview of the technical characteristics of the Variocool LAUDA models. TECHNICAL VISUALIZATION 1 - Filler nozzle with cover 2 - Control panel 3 - Pressure gauge 4 - Mains switch 5 - Alarm output and module bays 6 - Front panel (ventilation openings only in case of air-cooled devices) 7 - Ventilation openings (on both sides) 8 - Four castors (front castors with locking brake) 1 - Pump connection, outflow 2 - Bypass adjusting wheel 3 - Pump connection, return flow 4 - Drain tap 5 - Connecting sleeve for water cooling outlet (only available for water- cooled devices) 6 - Connecting sleeve for water cooling intake (only available for water- cooled devices) 7 - Ventilation grid 8 - Rating label 9 - Power supply 10 - Fuses (up to and including VC 3000 (W)) 1 - Light sensor 2 - Pressure gauge 3 - Mains switch 4 - Entry key and arrow keys 5 - Soft keys (left and right) 6 - USB interface Type B (on the side of the control panel) 7 - TFT display

LAUDA Variocool: Versatile circulation chillers from 1200W to 10 kW used between -20°C and +80°C to  (more)dissipate process heat in laboratories, small plants or production. LAUDA Variocool circulation chillers convince with their space-saving design and the versatility offered by a wide variety of options. They are circulation thermostats suitable for use with non-flammable heat transfer liquids within a moderate temperature range. The new control panel design and color TFT display make making changes very simple and intuitive. Various options in power kW, pump pressure / flow rate and tank size offer a wide range of choice for the customer, adapting better to his needs. Contact us to understand the model that best suits your needs. All models (except VC 600) are available in the air-cooled or water-cooled (W) versions and equipped with fixed swivel castors. High performance circulation chillers starting with the VC 5000 are available with sound insulation or outdoor installation option. Cooling performance of the Variocool VC 7000 model (measured with ethanol): - a 20°C, 7.00 kW - a 10°C, 5.30 kW - a 0°C, 3.70 kW - a -10°C, 2.40 kW - a -20°C, 1.50 kW Notable features - Adjustable bypass for pressure limitation - Top filling opening, drain cock on the back - Integrated programmer with 150 segments, divisible into 5 programs - Electronic level indicator with low level alarm - SmartCool system for energy-saving digital control of cooling, including automatic compressor control - Temperature graphs on display Examples of specific applications - Refractometer - Polarimeter - Disposable bioreactors - Extruder for food production - Micro reactors - Reactive control in chemical / pharmaceutical environments - Climatic chambers - Spatial simulation - Electric mobility; battery test - Test benches - Stress test - Crystallization regulation - Lyophilization - Micro structures - Painting plants Accessories included Nozzles for pump connections; screw cap. Various options in power (kW), pump pressure/flow rate and tank size offer a wide range of choice for the customer, adapting better to his needs. Contact us to understand the model that best suits your needs. Simple control panel with large TFT display with lots of information. Front panel of the LAUDA Variocool easily removable for fast maintenance and modifications. Easily upgradeable with different interfaces (analog module, contact module, RS 232/485, Profibus, Ethernet-USB module). USB Type B Interface. Connections located on the back of the Variocool: inlet/outlet pump connection; bypass adjustments. Large frontal pressure display. Pump performance graph of LAUDA Variocool heating chillers. Overview of the technical characteristics of the Variocool LAUDA models. TECHNICAL VISUALIZATION 1 - Filler nozzle with cover 2 - Control panel 3 - Pressure gauge 4 - Mains switch 5 - Alarm output and module bays 6 - Front panel (ventilation openings only in case of air-cooled devices) 7 - Ventilation openings (on both sides) 8 - Four castors (front castors with locking brake) 1 - Pump connection, outflow 2 - Bypass adjusting wheel 3 - Pump connection, return flow 4 - Drain tap 5 - Connecting sleeve for water cooling outlet (only available for water- cooled devices) 6 - Connecting sleeve for water cooling intake (only available for water- cooled devices) 7 - Ventilation grid 8 - Rating label 9 - Power supply 10 - Fuses (up to and including VC 3000 (W)) 1 - Light sensor 2 - Pressure gauge 3 - Mains switch 4 - Entry key and arrow keys 5 - Soft keys (left and right) 6 - USB interface Type B (on the side of the control panel) 7 - TFT display

Varioshake shakers The silent LAUDA shakers are available in a large number of variations and shake  (more)each sample evenly, such as 15ml and 50ml tubes, Erlenmeyer flasks and containers. They can be used for a large number of purposes, thanks to a wide range of accessories. Areas of application: - Biology and microbiology - Medical diagnostics - Analytical laboratories - Test institutes, universities and research facilities - Quality Assurance Laboratories Reliable and durable with new LAUDA design The shakers are the laboratory's trusty 'workhorse'. LAUDA agitators are produced with 'GFL technology' and are synonymous with the highest quality, reliability and durability. Their robust, low-wear mechanical system ensures extremely smooth operation and reliable continuous service. Furthermore, thanks to the new LAUDA design, the stirrers adapt to any laboratory environment, thanks to their small footprint and are extremely easy to use. Control panel: analog or digital The LAUDA Varioshake VS 8 OE and BE, with analog rotary controllers, allow adjustment of speed and operating time. Digitally controlled agitators provide an extended timer range, start / stop function and provide the ability to save the latest operating parameters. The wide range of accessories allows Varioshake shakers to be adapted to any need without problems. Shaker tray, test tube holder, Erlenmeyer flask clamp easy to install in seconds. All available as an accessory. Turn on, set the shaking frequency, set the running time, done. Highest quality materials: daily use for years without problems. The video dedicated to the Lauda Varioshakes with digital control.

Dimensions (WxDxH): 2020 x 670 x 940 mm

Samples and applications - Preparation of foamy mixtures (ice cream, butter, margarine, icing) and s (more)preadable creams - Preparation of tablets coatings - Preparation of pharmaceutical ointments and creams - Preparation of cosmetic products (lip balm, soap, shampoo, conditioner, creams, lipstick, mascara) - Preparation of pigments, inks, paints - Preparation of biodiesel and dispersion of petroleum derivatives (e.g., asphalt) TECHNICAL DATA - Rotor diameter: 15 mm - Stator diameter: 20 mm - Stator/rotor gap: 0.5 mm - Volume (H2O): 50 - 2,000 ml - Immersion depth: 40-175 mm - Max. speed: 25,000 rpm - Max. circumferential speed: 19.6 m/s - Ultimate fineness, emulsions: 1-7 µm - Ultimate fineness, suspensions: 5-40 µm - Max. allowable working temperature: 180 °C - Materials in contact with the medium: AISI 316L, PTFE - Suitable for solvents: Yes - Sterilization and cleaning methods: it is possible to sterilize all the components of the dispersing tool in different ways according to the construction materials and the sample processed
