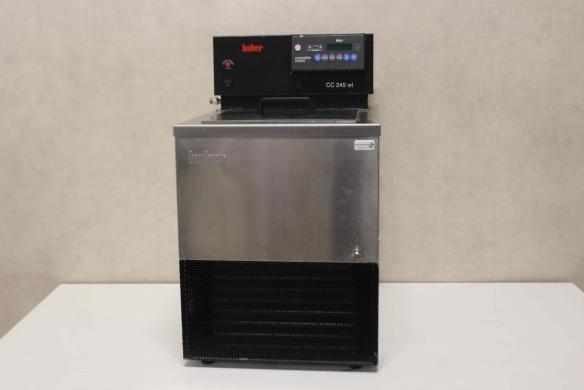

Huber CC245 wl Refrigerated Circulation Waterbath

The Huber CC245 wl is a sophisticated, refrigerated circulating water bath designed to maintain constant temperatures with precision. It features both air and water-cooled refrigeration units and utilizes a CFC and H-CFC free refrigerant (R507). Operating temperatures range from -45°C to 200°C, with outstanding stability at 0.02 K at -10°C. This unit employs a digital system for both temperature adjustment and indication, boasting a resolution of 0.1 K and equipped with an internal Pt 100 sensor, plus an external connection for a Pt 100 sensor.

The CC245 wl offers a substantial cooling capacity, delivering 0.8 kW at temperatures between 100°C and 0°C, and decreasing incrementally to 0.1 kW at -40°C. It also provides a flexible heating capacity of up to 1.5 kW, supporting a range of experimental needs. The integral pump system delivers a maximum force of 18 l/min at 0.5 bar, while the suction function offers up to 15 l/min at 0.4 bar, catering to various laboratory applications where fluid viscosity can reach up to 50 mm²/s.

The bath itself holds a volume of 22 liters, with an opening size of 280 x 280 mm and a depth of 200 mm, making it suitable for diverse uses. This robust unit measures 420 x 590 x 705 mm and weighs 71.5 kg, ensuring stability and durability in any laboratory setting.
