Lauda
Model
Lauda ECO RE 1050
Supplier
Jointlab srl
Location
Milano - Italy
Price
€6,988.00
(€8,315.72 incl. VAT*)*if applicable
This item is
for sale
State of item
new
Categories

LAUDA ECO RE 1050 S Cooling thermostat

Jointlab srl€6,988.00
(€8,315.72 incl. VAT* )* - if applicable
item image

Description by the supplier

LAUDA ECO Silver Cooling Thermostat


The LAUDA ECO Silver Cooling Thermostat is a high-performance temperature control system, designed with a sleek modern aesthetics and reliable, cutting-edge technology. With temperature ranges from -50°C to 200°C, it caters to various laboratory requirements across diverse models. Its efficient design consists of an integrated cooling system and a microprocessor management system.


A distinguishing feature of this model represents a mono LCD graphic display, coupled with an integrated mini USB interface. The thermostat strikes a balance between user-friendly functionality and display clarity, thereby enhancing the operator's experience. It is further backed by the LAUDA SmartCool intelligent system, ensuring minimal energy expenditure and optimized cooling performance.


Additional customization is enabled with six adjustable levels for the circulation pump, offering cooling capacities ranging from 180 to 700 watts. Furthermore, the refrigerated thermostats are standard with a tank lid and pump connections, and are offered with air or water cooling options.


The thermostat boasts a stainless steels vessel with a drain valve for easy and safe liquid replacement. It operates on the latest microprocessor technology and an integrated cooling system. It combines efficiency, safety, and user comfort—making it a reliable tool for both flammable and non-flammable liquid operations.


Main Features


• Monochromatic LCD display indicative of the current and set values

• An intuitive menu with easily navigable options

• Cursor and soft keys for simplified input, inclusive of an overtemperature protection key

• A fully electronic continuous controller with PID action

• Safety class III compliance for secure operations

• Adjustable Vario pump performance across six levels

• Non-interactive bath control of the internal and external circulation flow rate

• Standard USB interface with upgrade options for interface modules (Analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)

• Option for Pt 100/LiBus module for external control and remote control

• Integrated programmer allowing one program with up to 20 segments

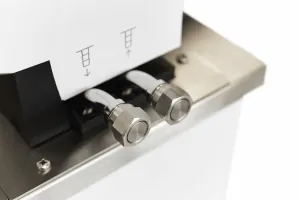

• Pump connectors with plastic nipples (13 mm diameter) as standard

• User friendly draining system with a drain valve

• Efficient cooling provided by a robust air condenser system

• Environment-friendly design utilizing natural refrigerants


The cooling system's performance can be visualized through graphs provided for the ECO Silver LAUDA cryostats and the pump performance across six levels.


The display and control interface provides status updates, temperature readings, and a user-friendly soft-key bar. The control panel offers pivotal keys for navigation and operation. The entirety of the design promotes easy usage, comfort, and safety in professional laboratory environments.

Product details
Temperature °C-50...200
External dimensions mm L x P x A280×440×624
Control panelGraphic Screen LCD
Pump pressure max. bar0.6
Pump delivery max. l/min.22
Tank volume l8...10 l
Temperature stability+/- 0.02 K
Power W2000
SeriesECO Silver
Cooling output at 20 °C 0,700 kW @ 20°C
Weight kg34.6
Supply230 V / 50-60 Hz
