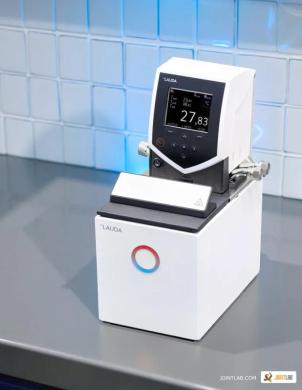

LAUDA ECO E 4 G heating thermostat

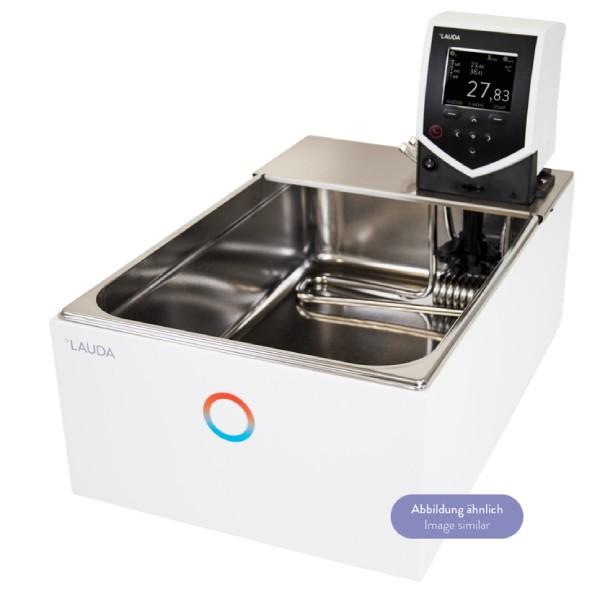

Heating thermostat from 20 to 100°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. . Graph of the heating performance of the Silver and Gold thermostats in the models with transparent polycarbonate tank. Performance graph of the pump pressing on the six levels.

Heating thermostat from 20 to 200°C, with LCD display and simple programming functions LAUDA ECO sta (more)nds out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - Monochrome LCD graphic display for simultaneous indication of actual and set values - The circulation pump can be adjusted to six levels - Integrated programmer: 1 program with max. 20 segments - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface - Pump connections with 13mm plastic nipples as standard LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Grafico delle prestazioni di riscaldamento dei termostati di immersione ECO Silver con vasca in acciaio inox. Performance graph of the pump pressing on the six levels. TECHNICAL VISUALIZATION Display 1 - Status display 2 - Display of the internal or external temperature value (T-int or T-ext) 3 - Soft-key bar Control panel 4 - Soft keys, left and right 5 - Enter key 6 - Cursor keys for Up, Down, Left and Right. 7 - T max key: display and adjustment of the overtemperature switch-off point 1 - USB interface 2 - Upper module receptacle approx. 51 mm x 27 mm for analog, RS 232/485 module, Profibus module and contact module 3 - Lower module receptacle approx. 51 mm x 17 mm for Pt100/LiBus module 4 - Connection socket 75S for control cable of cooling underpart for RE 1050 S 5 - Rating label 6 - Connection socket 51H for power supply between the control head and cooling underpart 7 - Mains connecting lead 1 - Cooling coil connections 2 - Pump connection: outflow and return (as standard only with E 4 S and ET 15 S) 3 - Four feet 1 - Mains connecting lead 2 - Rating label 3 - Bath draining tap 4 - Bath drain point

Temperature control range: -5°C to 99°C Usable temperature range: from 30°C below room temperature t (more)o 99°C Temperature accuracy for 0°C: ±1.0°C 37°C: ±0.5°C 90°C: 1.0°C Heating rate: 5°C/min Cooling rate simple temperature operation: 6.0°C/min between 99°C and 25°C 1.5°C/min between 25°C and -5°C Temperature deviation across blocks: Max 0.2°C Dimensions (WxDxH): 220 x 250 x 125 mm Weight: 5 kg Excluding block

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW

Dimensions (WxDxH): 900 x 600 x 830 mm

Dimensions (HxWxD): 770 x 2000 x 600 mm

Equipped with non-slip rubber mats on the shelves.

It allows the observation of samples without losing temperature.
