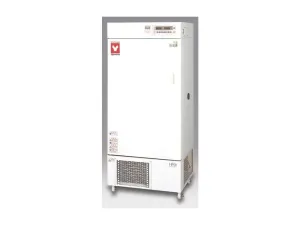

Yamato IN-804-115V Refrigerated Incubator Programmable 286L, 115V

Marshall Scientific$6,569.00 (ex VAT)
item image

Description by the supplier

Yamato IN-804-115V Refrigerated Incubator Programmable 286L, 115V



Refrigerant

R404A

Operating Temperature Range

Ambient +10-50°C

Temperature Accuracy

±0.3°C



Features

- High accuracy temperature control and temperature distribution

- Inner glass door keeps temperature stable during sample observation

- Made of Stainless steel (exterior) and Chrome free electronic galvanized plated steel plate chemical proof baking finish (interior)

- Includes Self diagnostic function

- Comes with 1 Year Manufacturer's Warranty

Product details
SystemForced air convection
Operating temperature range-10°C~+50°C
Temperature adjustment accuracy±0.3°C (refrigerator in continuous operation) / ±1.0°C (refrigerator in cycle operation)
Temp. distribution accuracy±1.0°C (refrigerator in continuous operation at 37°C)
Max. temp. reaching time20~50°C ~30min
Minimum temp. reaching time20~-10°C ~65min
Interior materialStainless steel
Exterior materialChrome free electronic galvanized plated steel plate chemical proof baking finish
Observation window---
Heat insulation materialStyrene foam
RefrigeratorAir-cooled fully closed compressor 300W
Refrigerator mediumR404A
Defrosting mechanismManual ON / Auto OFF, Timer operation, Cycle operation
Blower fanAxial fan
HeaterIron-chrome wire heater: 750W
SensorPlatinum resistance temperature detector: Pt100Ω (temp. controller), K-thermocouple (overheat prevention device)
Cable port (right side)I.D.: 30 mm
Temperature controlPID control
Temperature settingDigital setting with ▲▼ keys
Temperature displayMeasured temperature: 4-digit orange LED digital display + VFD fluorescent display
Timer / timer resolution0 min. ~ 999 hrs. 59 min. / 1 min.
Operation functionFixed temperature, auto stop, auto start, program (up to 32 steps, repeat operation)
Additional functionsTimer function (accumulated time to 49,999 hrs), calibration off-set function, clock display
Safety deviceSelf diagnostic function (Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention function), Key lock, Over current ELB, Overheat prevention device
Internal dimensions W x D x H600 x 477 x 1000 mm
External dimensions W x D x H710 x 645 x 1630 mm
Internal capacity286L
Shelf plate load15kg / pc.
Shelf rest step number / pitch23 steps / 30mm
Power supply (50/60Hz)AC115V 10.5A (with plug) AC220V 6A (no plug, round terminal)
Weight~ 120kg
Included accessoriesShelf and brackets (stainless steel punched metal), 5 pcs. shelves / 10 pcs. brackets
Door keys---
