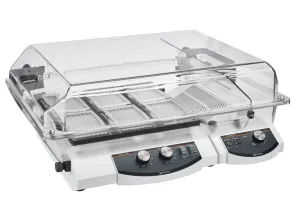

Heidolph 36130500 Titramax 1000 Vibrating Platform Shaker w/ Heating Module and Flat Incubator Hood
Description from the supplier
Heidolph 36130500 Titramax 1000 Vibrating Platform Shaker w/ Heating Module and Flat Incubator Hood
Speed Range
150 to 1,350 RPM
Temperature Range
Ambient +5°C to 65°C
Platform Size
290 x 258 mm
- Used for research requiring rigid or gentle shaking on microtiter plates or test tubes
- Includes safety features, ease of use, and increased efficiency
- Insulated system prevents heat transfer from the motor, safeguarding samples
- Suitable for the modular incubator system with variable temperature control up to 65°C
- Medium-sized model with a load capacity of 5kg
- Accepts 6 microtiter plates for increased throughput
- 1.5mm vibration orbit for gentle mixing with small sample volumes
- Analog process timer for unattended operation (1 to 120 minutes)
- Acoustic alarm and automatic stop after the set time expires
- Variable speed control (150 to 1,350rpm) via analog knob
This Tritramax package includes one vibrating platform shaker Titramax 1000, one heating module and one flat incubator hood. Titramax 1000, the incubating model platform shaker, is used for research which requires ridged or gentle shaking for small samples on microtiter plates or test tubes. Includes all standard features for safety, ease of use and increased efficiency. It comes with an insulated system to prevent any heat transfer from the motor that could cause potential thermal damage to your sample.
This model is suitable for the modular incubator system and is recommended for applications which require variable temperature control of up to 65° C. It comes with an insulated system to prevent any heat transfer from the motor that could cause potential thermal damage to your sample. It is a medium sized model and accepts load capacities of 5kg. The use of 6 microtiter plates increases your throughput by 50%. The 1.5mm vibration orbit performs gentle mixing with best results using small sample volumes. The analog process timer allows for unattended operation and can be set from 1 to 120 minutes. After time expires this model sends an acoustic alarm and operation is stopped. Set and continuously adjust the variable speed on the analog control knob from 150 to 1,350rpm.
The small incubator hood comes with a total height of 163mm and is recommended especially for microtiter plates, culture plates, small flasks, media bottles and Erlenmeyer flasks up to 100ml. The transparent and non-fogging PETG material allows for sample viewing and is easily cleaned.
Click Here to View Product Video
- Titramax 1000 Shaker
- Heating Module
- Flat Hood
- Power Cord
- Three Year Manufacturer's Warranty
Product details
| Motion | circular vibrating |
| Rotation speed range | 150 - 1,350 rpm |
| Operating Mode | Timer function / continuous operation |
| Orbit / Stroke | 1.5 mm |
| Timer | yes (max. 120 min) |
| Power input | 31 |
| Platform size | 290 x 258 mm |
| Max. Load | 5 kg |
| Overheat protection | self-resetting |
| Protection class (EN 60529) | IP 30 |
| Standard supply voltage | 230 V/50 Hz or 115 V/60 Hz |
| Power consumption (W) | 335 |
| Device fuses | T 2,0 A (230 V) or T 4,0 A (115 V) |
| Heating capacity (W) | 290 |
| Protective class (IEC 61140) | 1 |
| Protection class (IEC 60529) | IP 30 |
| Sound pressure level (dB(A))(based on IEC 61010) | < 45 |
| Operating mode | continuous |
| Temperature control | electronic |
| Temperature range 230 V (°C) | 5* - 65 |
| Temperature setting | digital |
| Temperature accuracy (°C) | ± 2 up to 50 °C heating temperature± 4 from 50 °C heating temperature |
| Dimensions (w x h x d) (mm) | 170 x 140 x 375 |
| Weight (kg) | 5.2 |
| Hood, 2-parts (PETG) | flat |
| Dimensions (w x h x d) (mm) | 570 x 163 x 390 |
| Volume (dm3) | 28 |
