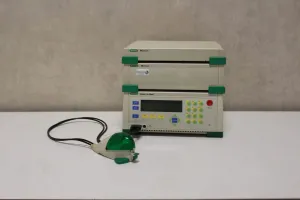

Bio-Rad Gene Pulser Xcell Electroporation System

The Bio-Rad Gene Pulser Xcell System is an advanced, versatile electroporation platform designed to achieve high transfection efficiency and viability across a wide range of cell types, including primary, suspension, and challenging-to-transfect cells such as T cells, bacteria, and fungi. This modular system includes a main unit, a capacitance extender (CE module), a pulse controller (PC module), and a ShockPod cuvette chamber.

The system's key features include universal electroporation capabilities and flexibility in experimental parameters, ensuring optimal results. It comes with preset, ready-to-use protocols for common mammalian and bacterial cell types, while also allowing manual operation for custom parameter input and storage. Optimization protocols support incremental voltage adjustments for fine-tuning conditions.

The system delivers exponential and square waveforms and incorporates PulseTrac circuitry with arc protection, providing reliable, reproducible results and sample safety. A protocol library offers a comprehensive collection of electroporation protocols for each cell type, alongside prevalidated published protocols that save time spent on optimization.

The system supports easy data management by storing and recalling parameters and results from the last 100 experiments, assisting in effective troubleshooting.

Technical specifications include an output voltage range of 10 – 3,000 V, capacitance settings from 10 – 500 V with 25 – 3,275 µF in 25 µF increments, and resistance options spanning 50 – 1,000 Ω in 50 Ω increments. Square-wave timing is adjustable, and the unit is compact, measuring 310 x 300 x 280 mm, with a weight of 11.6 kg.
