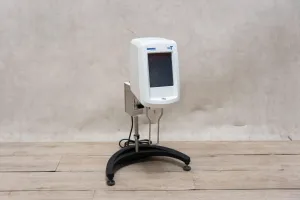

Brookfield DV2T Viscometer

The DV2T Viscometer features a 5-inch color display to guide users through test creation and data gathering for fast and easy viscosity measurements. The DV2T also offers powerful programming capabilities and results analysis including data averaging and QC limits with alarms.

User instructions with multi-step test protocols can be created using the Program Generator Software and uploaded to the DV2T through a USB Flash Drive. Test Data can be recorded directly on a local printer or sent to a PC (included with instrument).

5-inch full color, touch screen display supports multiple languages

Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status

Enhanced security provides customizable user levels and password access.

Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison

Auto range shows maximum viscosity measured with any spindle/speed combination

USB PC interface provides optional computer control and automatic data gathering capability

Front-facing bubble level for convenient viewing

Accuracy of ±1.0% of range with displayed test data

Repeatability of ±0.2%

Viscosity range: 1 to 6M cP (mPa•s)

Speed range: 0.1 – 200 rpm

Spring torque: 673.7 Dyne-cm (0.0673 Milli Newton-m)
