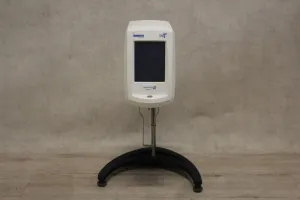

Brookfield DV2T Viscometer

The DV2T Viscometer features a 5-inch color display to guide users through test creation and data ga (more)thering for fast and easy viscosity measurements. The DV2T also offers powerful programming capabilities and results analysis including data averaging and QC limits with alarms. User instructions with multi-step test protocols can be created using the Program Generator Software and uploaded to the DV2T through a USB Flash Drive. Test Data can be recorded directly on a local printer or sent to a PC (included with instrument). 5-inch full color, touch screen display supports multiple languages Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status Enhanced security provides customizable user levels and password access. Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison Auto range shows maximum viscosity measured with any spindle/speed combination USB PC interface provides optional computer control and automatic data gathering capability Front-facing bubble level for convenient viewing Accuracy of ±1.0% of range with displayed test data Repeatability of ±0.2% Viscosity range: 1 to 6M cP (mPa•s) Speed range: 0.1 – 200 rpm Spring torque: 673.7 Dyne-cm (0.0673 Milli Newton-m)

TCSB 91 / 1S separately (specially developed) (prjis: € 155, =) UBBELOHDE 0C-4 (12 Could standard vi (more)sco’s with high accuracy series 88/1) (price: € 1.265, =) UBBELOHDE 4 (95-1) + 1x Ostwalds 8-11 (these 5 as series for calibrating very viscous liquids), (price: € 635, = or € 131, = / pc) They are all valuable tubes, with which other tubes can be calibrated.

test

The DV2T Viscometer features a 5-inch color display to guide users through test creation and data ga (more)thering for fast and easy viscosity measurements. The DV2T also offers powerful new programming capabilities and results analysis including data averaging and QC limits with alarms. 5-inch full color, touch screen display supports multiple languages Displayed info includes: viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, step program status Enhanced security provides customizable user levels and password access. Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison Auto range shows maximum viscosity measured with any spindle/speed combination USB PC interface provides optional computer control and automatic data gathering capability Download custom test programs with PG Flash software Front-facing bubble level for convenient viewing Built-in temperature probe Accuracy of ±1.0% of range with displayed test data Repeatability of ±0.2% Viscosity range: 15 – 6.000.000 cP (mPa/s) Spring torque: 673.7 Dyne/cm, 0.0673 mN/m Included LV spindle set consisting of: LV-1: 15 – 20.000 cP LV-2: 50 – 100.000 cP LV-3: 200 – 400.000 cP LV-4: 1.000 – 2.000.000 cP

Speeds: Choice of 3 options, Instrument has “Interleaved” speeds when manufactured. Interleaved: LV/ (more)RV (18 speeds) 8 LV speeds followed by 10 RV speeds Sequential: LV/RV (18 speeds) 8 LV speeds and 10 RV speeds arranged in sequential order from lowest 0.3 rpm to highest 100 rpm. Custom: 54 speeds, user selectable External (PC Control): 0.01 – 200 rpm, 0.01 rpm increments from 0.01 to 0.99 rpm, 0.1 rpm increments from 1.0 to 200 rpm Temperature Sensing Range: -100˚C to 300˚C Temperature Accuracy: ±1°C (-100°C to 149°C), ±2°C (150°C to 300°C) Viscosity Range: 15 to 6000000 cP Viscosity Accuracy: ±1.0% of full scale range. Viscosity Repeatability: ±0.2% of Full Scale Range Weight: 9 kg Including spindles: LV – 1 LV – 3 LV – 4 LV – 62 Excluding temperature probe!

General purpose shaker with microprocessor control, ideal for basic mixing applications, staining te (more)chniques, staining and bleaching. Variable speed control provides a consistent, uniform shaking action. The speed is adjustable via a knob with 1 to 10 rotary knobs and the ramping function slowly increases the speed to the set point for added safety. Suitable for continuous use To be used at 0 to +40 °C (maximum 80% relative humidity, non-condensing), in an incubator, CO₂ incubator or cold store. Speed: 40 – 300 rpm Shaking motion: Circular motion Amplitude: 15 mm Platform (WxD): 222 x 299 mm Maximum load: 3.6 kg Dimensions (W×D×H): 280 x 430 x 102 mm Weight: 10 kg

Capacity: 5100 g Resolution: 0.1 g Repeatability: ±0.1 g Linearity: ±0.1 g Response time: 1.5 sec We (more)ighing plate: 145 x 130 mm Including printer

Weighing stone with Frame 500x400x760

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW
