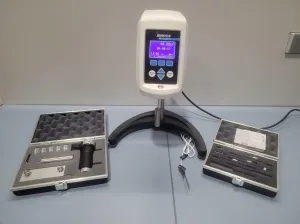

BROOKFIELD DV1 Viscometer with 4 Spindles + UL Adapter

Biomatyx
item image

Description by the supplier

BROOKFIELD DV1 Viscometer with 4 Spindles + UL Adapter

Type DV1MLVTJO

With 4 Spindle / Spindles type LV : numbers 61/ 62 / 63 / 64

The LV measurement is intended for low viscosity materials and can measure the finest materials. Typical examples include inks, oils and solvents.

Viscosity range: 15 – 2,000,000 mPa*s/cP

Speed: 0.3 – 100 rpm

Number of increments: 18

Torque measurement accuracy: 1% of full scale range

Repeatability: 0.2% of full scale range

Number of spindles: 4

Power supply: 220 V, 50-60 Hz

Tested at 1000 centipoise

With base (stand)

Year of manufacture: 2017

Product details
DetailMade in : Germany Serial No : 60206818
