Easily list your scientific equipment

Top suppliers for laboratory & industry

New and used instruments

Marketplace
Analytics
Brand
Radwag
Model
PUE HX5.EX-4 Weighing Terminal
Location
Radom - Poland
Price
€1,220.00
(ex. VAT)
This item is
for sale
State of item
new
Categories

Radwag PUE HX5.EX-4 Weighing Terminal

€1,220.00 (ex VAT)
item image

Description from the supplier

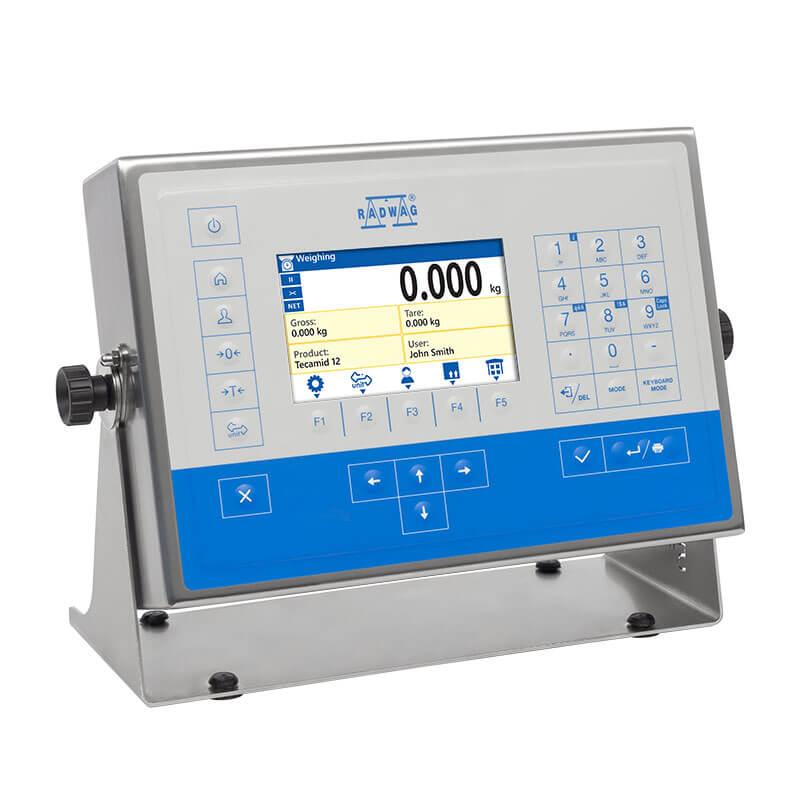

PUE HX5.EX terminal is a constructional component of industrial multifunctional load cell scales. It is the most modern RADWAG solution to be used in areas endangered with explosive atmosphere. The HX5.EX is compliant with ATEX directive regulations. The terminal is intended for operation in environment filled with explosive gases and dust, and can be placed in zones: 1/21 and 2/22.
Standard version of the terminal is equipped with 2 serial intrinsically safe RS232 communication interfaces, and with one intrinsically safe RS485 interface. They facilitate communication with equipment predetermined for use in hazardous areas. Possibility to add digital inputs/outputs expands the range of instruments compatible with the terminal by robotic elements compliant with ATEX directive. For more demanding customers, RADWAG has developed IM01.EX module, installed in the safe area, which extends the available connector range by Ethernet, USB, 4-20mA/0-10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables communication between the terminal and external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

Models

There are 4 different models:

PUE HX5.EX-1: 2 × RS232, RS485 - standard design,

PUE HX5.EX-2: standard design + 4IN/4OUT,

PUE HX5.EX-3: standard design + 4IN,

PUE HX5.EX-4: standard design + 4OUT.

Mechanical Design
The housing, made of AISI 304 stainless steel, ensures high ingress protection, IP66 / IP68 (up to 1.5 m immersion). The terminal features 5" colour LCD, covered with polycarbonate protecting it against shocks, and a membrane keypad. Ease of operation, clear menu and intuitive information arrangement on the display guarantee comfort of operation. Hermetic intrinsically safe interface connectors are located on the back side of the housing. Stable bracket enables mounting the terminal either on a flat horizontal surface or on the wall. The device tilt can be easily adjusted.

Power Supply
The PUE HX5.EX terminal can be connected to the mains only with a certified intrinsically safe power supply, manufactured by RADWAG:

PM01.EX-1 power supply intended for operation in hazardous area:

zone 1 and 2 where there is a risk of explosion due to mixture of air with vapour, mist or gas, classified as explosion group IIC, IIB and IIA and as temperature class T1, T2, T3, T4.

zone 21 and 22 where there is a risk of explosion due to mixture of air with dust, flammable fibres and volatile fuels, classified as explosion group IIIC, IIIB and IIIA.

PM01.EX-2 power supply intended for operation in safe area, equipped with intrinsically safe circuits which may be placed in:

zone 1 and 2 where there is a risk of explosion due to mixture of air with vapour, mist or gas, classified as explosion group IIC, IIB and IIA and as temperature class T1, T2, T3, T4.

zone 21 and 22 where there is a risk of explosion due to mixture of air with dust, flammable fibres and volatile fuels, classified as explosion group IIIC, IIIB and IIIA.

IM01.EX Communication Module
The terminal’s interface range can be expanded using IM01.EX communication module, connected to the terminal via an intrinsically safe RS485 interface, placed outside the hazardous area.
Models:

IM01.EX-1
Standard: 2x RS232, USB,4 I/4 O, Ethernet

IM01.EX-2
analog output 4-20mA/0-10V

IM01.EX-3
12 I/12 O, digital

IM01.EX-4
Profibus DP

IM01.EX-5
PROFINET

IM01.EX-6
CANopen (available soon)

IM01.EX-7
DeviceNet (available soon)

IM01.EX-8
RS485

IM01.EX: ETHERNET IP (available soon)

Multifunctional Software
Terminal software facilitates processes such as weighing, parts counting, dosing, and percent weighing. Terminal’s information system is based on databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety. The interfaces enable communication between the terminal and the accessories intended for operation in the hazardous and non-hazardous areas. Accessories: barcode scanners, printers, external displays, control buttons, light signalling towers and other controlling/signalling devices. The terminal can communicate with systems for automatic process control and superior IT systems.

Product details

FunctionsLabelling, Plus/Minus Control, Percent Weighing, Parts counting, Newton unit measurement, Statistics, GLP Procedures, Replaceable unit, ALIBI Memory
About QuestPair

QuestPair is a platform to find and acquire laboratory equipment by connecting research organisations, universities, and companies with high-quality, affordable instruments. The platform facilitates multiple sales daily worldwide and works with partners around the globe to provide trusted, vetted products for a wide variety of scientific needs. Our in-house developed AI algorithms collect data on the usage and availability of scientific instruments, enabling us to provide tailor-made assistance in sourcing suitable laboratory equipment. With a focus on cost-effectiveness and sustainability, QuestPair has an excellent track record in streamlining acquisitions for laboratories to further scientific research and development.

Related items:
Radwag High Resolution Platforms PL.300.HRP.EX.H-cover
Radwag High Resolution Platforms PL.300.HRP.EX.H

Stainless Steel HRP EX.H Platform Wherever high readability and precision are important. Wherever go (more)od repeatability in harsh industrial conditions matters. Stainless Steel HRP EX.H Platforms are the ideal solution for any type of industry. Repeatability that cannot be repeated by others Stainless Steel HRP EX.H Platforms have a built-in internal adjustment system. Automatic internal adjustment guarantees the best quality of work and repeatability of results. You save time and avoid the inconvenience of manual adjustment. Hazardous areas are their natural environment Stainless Steel HRP EX.H Platforms have been developed in accordance with Directive 2014/34/EU and the IECEx scheme and, depending on their design, can operate in environments containing explosive gases or dust, classified as zones: 2 and 22. We have equipped them with an intrinsically safe RS 485 communication interface, which allows the platform to work with the PUE HX5.EX weighing meter. To power the platforms, we have dedicated intrinsically safe PM02.EX-1-2 or PM02.EX-2-2 power supplies. Use the potential Stainless Steel HRP EX.H Platforms work with the PUE HX5.EX weighing terminal and are compatible with RADWAG receipt printers. In addition, you will match them with appropriate antivibration tables from our offer, and thus increase the readability of your measurements. The use of stainless steel for the construction of the pan guarantees you a long life of the platform. Fearless of its contact with moist objects or accidental splashing.

€10,708.00 ex VAT
Poland
scales for ex areas, weighing platforms, general laboratory equipment other, industrial scales accessories
Radwag High Resolution Platforms PL.16.HRP.EX.H-cover
Radwag High Resolution Platforms PL.16.HRP.EX.H

Stainless Steel HRP EX.H Platform Wherever high readability and precision are important. Wherever go (more)od repeatability in harsh industrial conditions matters. Stainless Steel HRP EX.H Platforms are the ideal solution for any type of industry. Repeatability that cannot be repeated by others Stainless Steel HRP EX.H Platforms have a built-in internal adjustment system. Automatic internal adjustment guarantees the best quality of work and repeatability of results. You save time and avoid the inconvenience of manual adjustment. Hazardous areas are their natural environment Stainless Steel HRP EX.H Platforms have been developed in accordance with Directive 2014/34/EU and the IECEx scheme and, depending on their design, can operate in environments containing explosive gases or dust, classified as zones: 2 and 22. We have equipped them with an intrinsically safe RS 485 communication interface, which allows the platform to work with the PUE HX5.EX weighing meter. To power the platforms, we have dedicated intrinsically safe PM02.EX-1-2 or PM02.EX-2-2 power supplies. Use the potential Stainless Steel HRP EX.H Platforms work with the PUE HX5.EX weighing terminal and are compatible with RADWAG receipt printers. In addition, you will match them with appropriate antivibration tables from our offer, and thus increase the readability of your measurements. The use of stainless steel for the construction of the pan guarantees you a long life of the platform. Fearless of its contact with moist objects or accidental splashing.

€4,714.00 ex VAT
Poland
scales for ex areas, weighing platforms, general laboratory equipment other, industrial scales accessories
Radwag HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version-cover
Radwag HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous (more) areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component. To operate the scale, order a selected type of the dedicated intrinsically safe power supply. Power supply types: PM01.EX-1 - power supply for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area. PM01.EX-2 - power supply for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area. Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics. The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process. Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not. The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.

€9,966.00 ex VAT
Poland
scales for ex areas, platform scales
Radwag HX5.EX-1.4.600.C8/9 4 Load Cell Platform Scale-cover
Radwag HX5.EX-1.4.600.C8/9 4 Load Cell Platform Scale

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous (more) areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component. To operate the scale, order a selected type of the dedicated intrinsically safe power supply. Power supply types: PM01.EX-1 - power supply for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area. PM01.EX-2 - power supply for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area. Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics. The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process. Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

€5,088.00 ex VAT
Poland
scales for ex areas, platform scales
Radwag HX5.EX-1.4.300.C7 4 Load Cell Platform Scale-cover
Radwag HX5.EX-1.4.300.C7 4 Load Cell Platform Scale

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous (more) areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component. To operate the scale, order a selected type of the dedicated intrinsically safe power supply. Power supply types: PM01.EX-1 - power supply for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area. PM01.EX-2 - power supply for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area. Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics. The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process. Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

€4,986.00 ex VAT
Poland
platform scales, scales for ex areas
Radwag HX5.EX-1.60.HR3/5 One Load Cell Platform Scale-cover

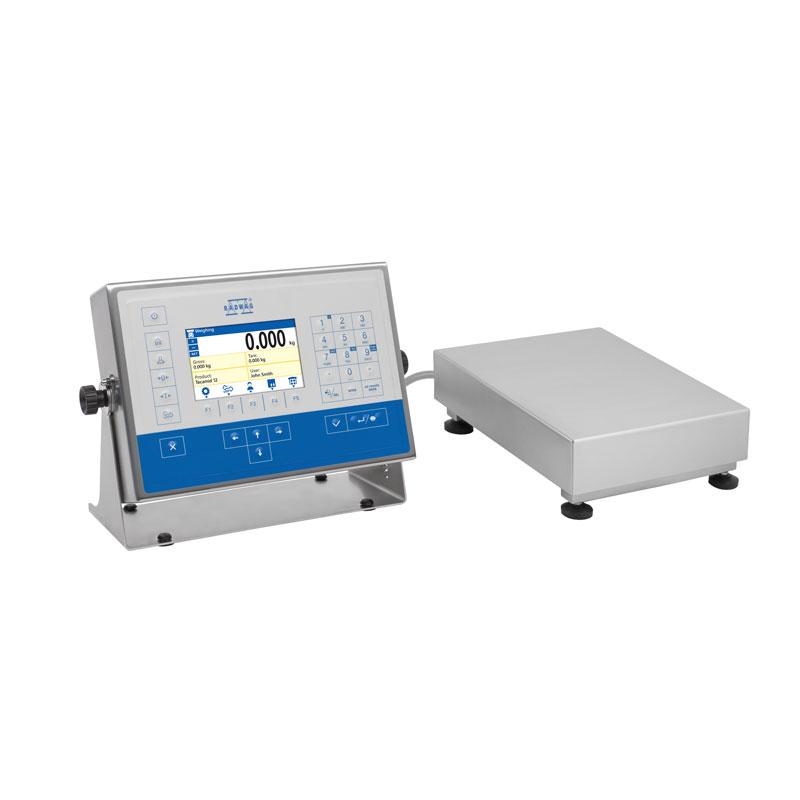

Radwag HX5.EX-1.60.HR3/5 One Load Cell Platform Scale
