Radwag DWT/RC SY Checkweigher

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW

Are you overwhelmed by the number of production processes? What about having them all under control? (more) To be able to analyse and correct them in real time? After all, it is the key to increasing the efficiency of the production line! Our clients, the factory owners, were the ones who told us about their problems and needs. Our answer is simple: the E2R System. This software is designed to make your work easier. The E2R System consists of six independent modules: 1. E2R Weighing, 2. E2R Weighing Records, 3. E2R Formulations, 4. E2R PGC, 5. E2R Checkweigher, 6. E2R Moisture Analyzer. Choose the best module for your company. Need more information? With the E2R Checkweigher module, you can: collect the weighings recorded by the checkweighers; add, delete and edit elements of the “Products” and “Operators” databases; monitor, from the computer, the weighings carried out on the checkweighers; sort the collected weighings using the preset filters; summarise filtered data in different forms (e.g. weighing sum or measurement mean); handle large amounts of data in real time; define the permission levels for specific operators; export weighings to external files in XLS and CSV formats; export reports to files: PDF, HTML, MHT, RTF, XLS, CSV and TXT; generate both general and detailed reports on the weighings collected; generate graphs of the weighings carried out at the selected time; generate reports: “PGC”, “Standard” and “Miscellaneous” sent from the checkweigher; monitor the status of the checkweigher connected to the E2R System via the E2R Manager application; generate weighing graphs for a given scale in real time, taking into account thresholds and Qn values for the controlled product; enable or disable the collection of individual weighings and their reporting depending on the hardware configuration of the computer on which the E2R Checkweigher module is installed.

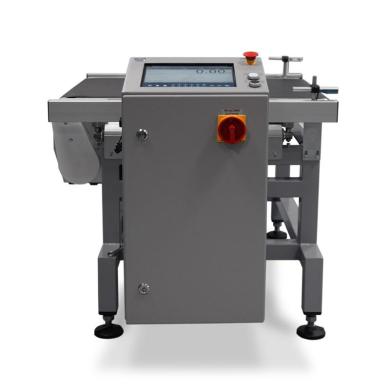

Automatic checkweigher DWT/RC series is a device designed to control heavy loads or cumulative produ (more)cts. It provides full control of goods transported on a processing line. The device is manufactired in a stanless steel version. Automatic scale DWT/RC series is equipped with a terminal HY series ensuring stability and reliability of operation. The HY controller despite simple construction provides extended possibilities of cooperation with peripheral devices and supplies a set of informative-controlling signals which simplify integration with a processing line. The terminal HY series features full alphanumeric keyboard, and touch screen display which enables very simple and intuitive checkweigher operation. Application: Automatic checkweigher DWT/RC/HY series is designed to control single goods according to customers regulations or according to current regulation on Control of Packaged Goods. The checkweigher can operate in dynamic or static mode. DWT/RC series is attested by NIH. Main applications: · agri-food industry, · chemical industry · meat industry · tobacco industry · distilling industry, · engineering industry, · brewing industry, · transport, shipping. Functions Control of goods in accordance with regulation on Control of Packaged Goods, Control of goods in accordance with customer regulations, Acquiring data on controlled goods, Database of products, Database of operators, Definable access levels for scale users, Statistics conducted in real time, Reports generated automatically in accordance with the weighing mode Cooperation with peripheral devices in a processing line, Remote control, Cooperation with computer software, Static weighing mode. Cooperation with peripheral devices Automatic checkweigher DWT/RC series is prepared to cooperate with peripheral devices, and devices form a processing line. I/O set provides broad configuration possibilities and full integration of the scale with an existing processing line. Printout on thermal printers, Remote control, Records on weighments stored on an external computer, Control over additional conveyors, Cooperation with dosing device with feedback. Implementation options: Feeding conveyor with function of separating packages, Discrimination of defective goods by weight, Separate discriminating set for "too light" and "too heavy" goods, Sounder and/or Warning tower lights, Cooperation with dosing device with feedback, Cooperation with printer, Software for keeping records from weighing processes.

Automatic checkweigher DWT/RC/HYF series is dedicated to work on technological lines of food industr (more)y, where high humidity and frequent high pressure cleaning are the major issues. The construction has been designed to enable fast and easy cleaning. Special emphasis has been put on elimination of gaps, spaces and flat surfaces susceptible to condensates and waterstains. The structure of the conveyor belt allows washing it inside and outside without dissembling. The electronics has been placed high above the weighing platform for minimizing the possibility of inundation of the control panel. The checkweigher DWT/RC/HYF series is created in accordance with vertical space division. “Clean zone” ranges from the floor to the level of the conveyor belt (the area where food and production waste accumulates). “Technological zone” is placed above the production line. The control mechanism is based on a terminal HY series, facilitating easy communication between the operator and the machine and providing additional features. Standard functions: - Database of operators and products - RS 232/485 and Ethernet interfaces - I/O control - Current weighing statistics - Automatic printouts - Reports - Cooperation with computer software Additional functions: - Faulty goods discriminator - Barcode scanner - The checkweigher can be equipped with standard ink printers and labelling printers allowing to print the tags of the weighed products - Sounder and/or Warning tower lights - Cooperation with feeders, mounted to the front side, in a feedback system.

Automatic rotational scales is designed for operation in technological lines of cylindrical packaged (more) goods, like aerosols, sprays, glass and plastic bottles, etc. Control unit is based on Windows Embedded software and SQL database server. Industrial computer is designed to operate in hard industrial conditions. Its cooperation with specially prepared Windows platform makes the system stable and allows for holding set parameters. Graphic and touch screen communication panel makes operation very easy and intuitive which has already been appreciated by users. Rotational device is not equipped with its own conveyor belt, it is mounted over an existing one, which significantly shortens and simplifies its installation. The scale is pneumatically powered. This provides high durability and reliability. Application: Rotational scales is intended to control cylindrically shaped single packages, like aerosol, with diameter 35- 66mm*. System operates in accordance with regulation on Control of Prepacked Goods. Main application: · Chemical industry, · Pharmaceutical industry, · Distilling industry, · Food processing industry. * it is possible to weigh containters with other diameter Functions Rotational scales provide 100 % control of goods transported on the processing line. Goods that do not meet set thresholds are discriminated from the line. Control of goods in accordance with regulation on Control of Packaged Goods, Acquiring data on controlled goods, Definable access levels for scale users, Discrimination of defective goods by weight, Extended statistics conducted in real time, Built-in line performance meter, Reports generated automatically in accordance with the weighing mode, Export of reports to PDF files, Cooperation with other devices in a processing line, Remote start and stop function, Detection of line congestion, Detection of empty line, Cooperation with computer software. Basic technical data Industrial Windows Embedded system, Industrial computer designed for operation in hard conditions, Graphic touch screen, Databases applying SQL servers, Interfaces and ports: RS232, USB and Profibus, Ethernet, Controlling - informative outputs control, IP55 or IP65 Cooperation with peripheral devices Rotational scale is prepared to cooperate with peripheral devices, and devices form a processing line. I/O set provides broad configuration possibilities and full integration of the scale with an existing processing line. Cooperation with dosing device with feedback, Cooperation with barcode scanner, Printouts on receipt printers, Remote control , Keeping records from weighing on a computer. Implementation options: Separate discriminating set for "too light" and "too heavy" goods, Sounder and/or Warning tower lights, Cooperation with printers and label printers, Two USB ports, Profibus and Modbus interface support, Weighing record application.

DWM HPE is a combination of a checkweigher system and a labelling system, designed for weighing and  (more)marking of products of variable weight. These parameters speak for themselves: Maximum capacity: 7,5 kg Readability [d]: 1 g Throughput: up to 60 pcs./min You See Everything Even From a Distance The device has been equipped with 12-inch, colour screen and a touch pannel. It can be programmed either using a terminal or remotely, with the Label Editor and E2R Checkweigher software run. Go for the solution which you find more convenient. And you design the labels from the Label Editor. Apply the Labels the Way You Like You can adjust the label application system to particular requirements of the production process of yours (application from the top, application from the side). To meet the most demanding requirements, we can apply tamp or blow label applicators mounted on the actuator or the rotary arm. Should you need to use metal detection and rejection systems, we can equip the device with them – its modular design allows that. You Want to Know What For You Need It? Well, the answer is this: mainly for industry. The DWM labelling checkweighers are intended for industry since it requires pre-packaged products of variable weight to be marked with labels including price. Our devices’ functions are as follows: Constant-weight product labelling, Variable-weight product labelling, Single/ bulk/ pallet label printing, Product sorting, Contamination check-ups, Weighed product record, Freely configurable report module. Plus, They Conform to Worldwide Standards The DWM labelling checkweighers have type approval accordant with MID directive and are tested in accordance with OIML R51 reccomendations. The software enables creation and printout of any labels, also those that include product price. Software Tools Label Editor R02 E2R Checkweigher

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW

Scanner type: Flatbed, Color Photoelectric Device: Color CCD Line Sensor Effective pixels: 27,200 x  (more)37,440 pixels at 3200 dpi Document size: 216 x 297 mm (8.5 x 11.7 in.) A4 or US letter (You can set the scanning area with your software.) Scan resolution: 3200 dpi (normal scanning), 6400 dpi with micro step (interpolated scanning) Output resolution: 25 dpi to 12800 dpi, (50 to 6400 dpi in 1 dpi steps, 12800 dpi. 12800 dpi with zoom) Scan speed: 14.3 msec/line at 3200 dpi, 3.5 msec/line at 600 dpi Color Separation:RGB Color Filters on CCD Image data: 16 bits per pixel per internal color, 16 bits per pixel per external color Brightness: 7 levels (In EPSON Scan, Brightness is controlled with gamma correction) Line Art: Fixed Threshold, Text Enhancement Technology (selectable on and off) Halftoning: AAS (Auto Area Segmentation), Selectable on and off, 3 halftone modes (A, B and C) and 4 dither patterns (A, B, C and D) for bi-level and quad-level data Gamma Correction: 2 types for CRT screen, 3 types for printer, 1 user-defined setting Color correction: 1 type for CRT display, 3 types for output to printer, 1 type for user-defined setting (only user-defined color correction is available in EPSON Scan) Interface: USB 2.0 (Type B connector) and IEEE 1394 Serial Bus Interface Light source: White fluorescent lamp with cold cathode Flawless operation: 30,000 carriage cycles (failure-free interval) Dimensions (WxDxH): 304 x 476 x 122 mm Weight: 6.0kg

The AGV-8/1000 automatic comparator determines density and volume of mass standards of class E1 and  (more)lower in accordance with OIML R111. It is characterized by the highest accuracy and measurement stability ranging between 1g and 1kg. The AGV-8/1000 automatic comparator enables density determination to be carried out simultaneously for 7 mass standards using one reference weight. The comparator features specially designed feeder to load and unload the magazine with mass standards. The device is equipped with an additional circulator eliminating air bubbles and a top-class liquid temperature sensor of 0.001 ˚C accuracy. A weighing pan suspended on wires eliminates the eccentricity and minimizes the influence of liquid surface tension. Dedicated software enables to determine mass standards density and calculate uncertainty using A method according to OIML R111. It also allows to determine (verify) liquid density.

Ohaus 30400126 Microplate Thermal Block The Ohaus 30400126 Microplate Thermal Block is crafted from  (more)Valox 357 Plastic for durability. This block is compatible with all Ohaus ISTH Series Thermal Shakers, and has a well depth of 0.9 in. INCLUDED: The Ohaus 30400126 Microplate Thermal Block includes: - Manufacturer's Documentation - 2 Year Manufacturer's Warranty

Tuttnauer 3950V Lab Line Vertical Autoclave, 220-240V Chamber Volume 60L Sterilization Temperature  (more)Range 121°C to 134°C Chamber Dimensions 15.3 x 19.9 in. (38.9 x 50.5 cm) Features - Designed to autoclave everything in your lab, including liquids, plastic, glass, sealed bottles, and bioreactors - No need to connect to building utilities, includes built-in reservoir - Built-in condensation reservoir - Two integrated temperature probes for complete sterilization of liquids - User-friendly touch screen control panel - 3 Year Manufacturer's Warranty
