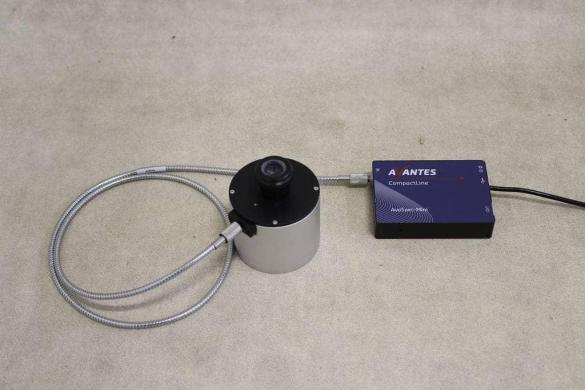

Avantes AvaSpec-Mini2048CL Spectrometer

The AvaSpec-Mini-CL series can be equipped with a 2048 pixel CMOS detector or our first-to-the-market 4096-pixel array. Enjoy the speed and enhanced native UV/NIR response of CMOS with an incredible resolution of up to 0.09 nm unavailable anywhere else. The low stray-light design allows stray-light levels from as low as 0.2% and the fast response time boasts data transfer speeds as fast as 4.6 ms/scan and integration times ranging from 30 µs to 50 s.

Optical bench: Symmetrical Czerny-Turner, 75 mm focal length

Wavelength range: 360 – 1100 nm

Stray light: 0.2 – 1%

Sensitivity in counts/µW per ms integration time: 337500

Detector: HAM S11639, CMOS linear array, 2048 pixels (14 x 200 µm)

Signal/noise: 330:1

AD converter: 16 bit, MHz

Integration time: 30 µs – 40 sec

Sample speed with on-board averaging: 3.0 ms/scan

Data transfer speed: 4.6 ms/scan

I/O: 5 bidirectional programmable I/O; 1 analog out; 1 analog in, 1 x 5 V

Dimensions (WxDxH): 95 x 68 x 20 mm

Weight: 175 g
