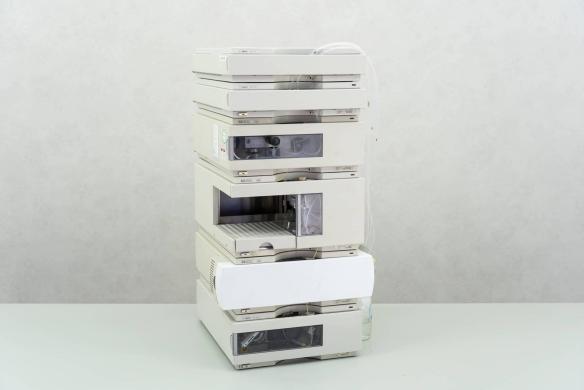

Agilent HP 1100 series HPLC

The HPLC modules from Agilent 1100 series can be used for both analytical and production applications:

Agilent G1311A Quartenary pump

Agilent G1313A AS Autosampler

Agilent G1316A Thermostated Column Compartment

Agilent G1322A Degasser

A description of the different modules is as follows.

G1322A – Degasser

The Agilent 1200 series vacuum degasser, model G1322A, consists of a 4-channel vacuum container, including 4 tubular plastic diaphragms and a vacuum pump.

G1311A – Quatpump

The G1311A provides virtually pulse-free and stable solvent flow with dual floating pistons. The pump is equipped with four solvent inlets with built-in gradient control. Gradient formation is performed by a low-pressure gradient valve.

G1313A – ALS (automatic liquid sampler)

This autosampler provides reliable injections from 0.1 µL to 100 µL with easy adjustment for injection volumes up to 1500 µL for applications ranging from microbore to semi-preparative chromatography. The system uses overlapping injections for increased productivity with sample capacities of 100 × 2 ml vials in a standard tray, 40 × 2 ml vials in a standard tray, or 15 × 6 ml vials in a half tray.

G1316A – ColCom (column compartment)

The G1316A thermostat column compartment is built with two heat exchangers for solvent preheating, automated column identification module and CAN cable. The G1316A offers a temperature range of 10° below ambient to 80°C and a temperature stability of ± 0.15°C. The Agilent G1316A has a column capacity of three 30 centimeter columns and can use a temperature accuracy of ± 0.8 ° C. The G1316A warms up/cools down from ambient to 40°C in 5 minutes.

Technical specifications

Voltage: 220-240V

External dimensions (W) x (D) x (H): 45 x 41 x 80 cm

Weight: 35kg
