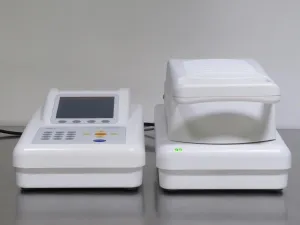

The Sartorius Mark 3 HP Moisture Analyzer is a modular infrared moisture analysis system featuring a high-resolution monolithic weighing system with 0.1 mg readability and 0.001% moisture detection sensitivity. It uses four parallel quartz infrared heaters for fast, uniform thermogravimetric drying over a temperature range of 30°C to 210°C, adjustable in 1-degree increments. This instrument supports moisture content measurements from 0.001% up to 99.999%, making it essential for accurate moisture determination in solids, liquids, and pastes.
Key technical features include:
This moisture analyzer is widely adopted across various research and industrial fields such as biopharmaceutical production pipelines, synthetic biology research, molecular diagnostics, food and beverage quality control, and biomass analysis. Its high-precision moisture quantification and flexible operation modes make the Sartorius Mark 3 HP critical in bioprocessing, gene editing workflows, and molecular cloning protocols, providing reliable data crucial for biotechnological and clinical diagnostic laboratories.
The modular infrared moisture analyzer combines analytical precision, robustness, and throughput to meet demanding industrial and research laboratory moisture analysis requirements, especially in biotechnology, clinical diagnostics, pharmaceutical quality assurance, and materials science.
| Readability | 0.1 mg / 0.001% |
| Weighing Capacity | 100 g |
| Typical Reproducibility of the Weighing System | Starting at an initial sample weight of approx. 1 g: ± 0.1% Starting at an initial sample weight of approx. 5 g: ± 0.02% |
| Method of Measurement | Thermogravimetric; loss on drying |
| Recommended Moisture Range | 0.001 - 99.999% |
| Heat Source | Four parallel infrared quartz cylinders |
| Modular Extension | Optional; up to 4 heater modules connectable |
| Data Printer | Integrated thermal printer; 40 characters |
| Temperature Range and Adjustment | 30-210°C in one-degree increments |
| Temperature Steps | Programmable; one or two with selectable ramp rate |
| Standby Temperature | Standby temperature selectable from 30-160°C |
| Temperature Display | Display of target temperature and actual temperature during the measurement and in standby mode |
| Display Modes | Weight loss in mg, % moisture, % dry weight, % volatiles, ppm moisture, ppm dry weight, concentration mg/L |
| Modes of Operation | Standard, syringe, concentration or 2-phase drying mode |
| Endpoint Determination | Timer mode; when value falls below a defined weight loss per time unit (%/min); trend shutoff |
| Program | 300 programs; battery-backed memory |
| Data Storage | Results with statistics of the last 999 measurements: average, SD, RSD, min and max |
| Temperature Adjustment | Optional set for internal electronic two-point adjustment |
| Adjustment of the Weighing System | Internal calibration weight or manual calibration and adjustment using an external weight |
| Ideal Initial Weight | Audio and visual display for programmable weighing of a sample to an initial target |
| Pass-Fail Function | Programmable target value including limits; pass-fail information at the end of a measurement |
| Display | Backlit VGA display |
| Real-Time Curves | Real-time curves of the loss in weight (% or grams) as well of the temperature curve during and after the measurement |
| System Status Indicator Lights | Two tricolor LEDs (balance & heater) on front of heater module |
| Interfaces | Serial and Ethernet; USB for service |
| Weighing System | Monolithic weighing system for high-precision results |
| Dimensions (W x D x H) | 16.3 x 19.5 x 9.3 in. (41.3 x 49.5 x 23.5 cm), modules combined |
| Weight | 22 lb.(10 kg), modules combined |
| Electrical Requirements | 90-250 VAC, 50/60Hz, self-adjusting power supply |
