Radwag RMCM 5.5Y Robotic Mass Comparator

Application: Mass comparator AKM-2 series featuring automatic mass loader enables automatic determin (more)ation of mass deviations of a single weight in a single cycle. The system of automatic mass comparator is commonly applicable in mass measuring laboratories, and particularly in certification units for weights classes E, F and M. Design and functionality: The supervising part of a mass comparator is a digital module which cooperates with a controller of instrument’s mechanical components. The automatic mass loader features a basis with self-centring fields, a robot and a steel body. The digital module and the robot are located in mass comparator’s weighing chamber. The loading robot is controlled by the computer’s controller. The instrument is operated by means of digital display which is plugged to mass comparator’s controller. Lengthwise shift of the loading robot with weights is carried out automatically using solenoid actuators. Additional software functions enable loading and taking off the weights, data processing and storing, and data export to instrument’s memory.

The AGV-2/20 automatic comparator determines density and volume of mass standards of class E1 and lo (more)wer in accordance with OIML R111. It is characterized by the highest accuracy and measurement stability ranging between 1 kg to 20 kg. The comparator features specially designed feeder to load and unload the magazine with mass standards. The device is equipped with an additional circulator eliminating air bubbles and a top-class liquid temperature sensor of 0.001 ˚C accuracy. A weighing pan suspended on wires eliminates the eccentricity and minimizes the influence of liquid surface tension. Dedicated software enables to determine mass standards density and calculate uncertainty using A method according to OIML R111. It also allows to determine (verify) liquid density.

PT0454 Cable is used to connect the 5Y and CY10 series balance to a communication module Media Box  (more)IM02.1. Its standard length is 0,6 m.

The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to (more) the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower. Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries. Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system. The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to (more) the OIML recommendations (R-111) from 1 mg to 5 kg for E1 class and lower. Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries. Mass comparator WAY 5Y.KO series similarly to other models, comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system. The WAY 5Y.KO series comes standard with an aesthetic, large weighing chamber with glass anti-draft shield. All elements of the weighing chamber are manufactured from glass or metal to minimize the influence of electrostatic charges on weighing result. Mass comparator WAY 5Y.KO series features an intuitive menu supporting a user while operating the instrument.

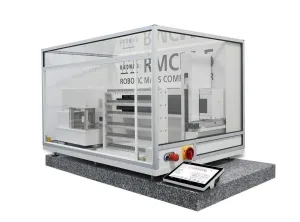

The new RMC.10000.5Y robotic mass comparator guarantees the utmost repeatability within 1 kg - 10 kg (more) range with the readability of 0,01 mg. Fully Automated Process of Robotic Comparison of Mass Standards Opening of the weighing chamber in the course of measurements generates air drafts and changes environmental conditions inside the chamber, this causes a great increase in dispersion. The new line of robotic mass comparators eliminates the above problem. It has been solved due to a combination of the robotic mass comparator features with the characteristics of the automatic machines. This innovative approach has improved comparison result repeatability by 100% in relation to standard solutions applied worldwide. A Robot and an Automatic Machine in One RMC 10000.5Y mass comparator combines features of robotic and automatic mass comparators. Thanks to such an innovative combination it is possible to: eliminate air drafts and ground vibrations, maintain stable environmental conditions inside the weighing chamber, prolong life cycle of the robotic system, shorten duration of mass standard comparison, reduce noise. Function of Automatic Mass Standard Dissemination RMCM-5 mass comparator facilitates a complete dissemination process. This is possible thanks to use of the intermediate mass standard magazine, which significantly shortens comparison duration and reduces wear and tear of the transport robot. Real-Time Measurement of Ambient Conditions The new RMC 10000.5Y mass comparator has been equipped with a top-class thermo-hygro-barometer enabling real-time control of ambient conditions in four locations, among many in the weighing chamber and mass standard magazine. Thermo-hygro-barometers are highly precise devices measuring pressure with the readability of 0.001 hPa, humidity of 0.01 %, and temperature of 0.001 °C. Reliability of ambient conditions measurement carried out using the thermo-hygro-barometer is confirmed by a calibration certificate. Universal Magazine Insert Design Mass standard magazine features 10 positions. The RMC 10000.5Y enables comparison of weights of all shapes compliant with OIML recommendations, using just one universal insert. Remote, real-time preview of comparison process is possible thanks to a video camera. Transport Arm With use of the automatic mass comparator, the transport arm remains inactive in the course of comparison, this eliminates air drafts and vibrations, considerably shortens comparison, and reduces noise emission. The transport arm of the RMC 10000.5Y mass comparator is used only to transfer the mass standards, it is out of operation within the comparison process. Ejectable mass standards magazine For the user's convenience, the magazine slides out of the robot's footprint at the time of arming and allows weights to be applied very easily, then positions itself automatically when retracted. Optional Equipment Additional equipment includes a video camera enabling remote preview of comparison process in real time (Internet access required), and RMCS software. The RMCS allows unrestricted monitoring of the comparison process.

White light transilluminator used for viewing x-rays, autoradiographs and microtiter plates. Dimensi (more)ons: 400*300*90mm.

Made of fabric, protects device housing against dust, dirt, etc.

HX7 H scale’s multi functions Many functions, many interfaces and great robustness (IP66/ IP68 (more)) mean many possibilities for you to use this advanced scale. Tomorrow you can apply it to a different process than today – that’s the multifunctionality. That’s the saving! Use the potential Barcode scanners, receipt printers, label printers, external displays, control buttons, light signalling towers and other controlling/ signalling devices – thanks to multipurpose software, HX7 scale can work with all of them. You can easily connect them thanks to the fact that the balance is equipped with interfaces: RS232, RS485, USB, Ethernet, 4 IN/ 4 OUT. Optionally, the balance can be equipped with 12 IN/ 12 OUT and analog output module. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you. Easy and pleasant Simple and convenient operation with a 7-inch color display. Perfectly visible messages additionally supported by bargraph. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields. The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds. The bracket allows the terminal to be placed on any flat horizontal surface or screwed to the wall with adjustable angle. The power of steel The use of stainless steel guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes. The construction of the scale is made of a stainless steel. This guarantees you work for many years. Not just weighing But also parts counting, dosing, percent weighing and formulations. The power of HX7’s working mods. Do you need ALIBI? There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased. Referring to stored weighings you can generate weighing reports, formulation reports and reports on performed control processes. Single weighing is stored in the ALIBI memory as long as it is specified by a Weighing Storage Period (days) parameter.

Branson SFX550 Sonifier w/ 1/2" HornFeatures - 20 kHz ultrasonics for quiet tabletop operation. - Sa (more)mple sizes from 0.2 to 1000 mL. - High-efficiency, handheld and stand-mountable converters require no internal cooling. - Scrollable, multifunction screen with pushbuttons. - Continuous or pulsed ultrasonics. - Amplitude control range from 10 to 100%. - Microtip mode limits amplitude to 70% to extend tool life. - Control modes include time, temperature, and energy. - Advanced energy control mode delivers precise energy input in continuous or pulse modes. The fully digital control screen allows the user to quickly and effortlessly select control settings, power level, and sonification duration. The Branson SFX sonifer gives users ultimate control with an amplitute range of 10 to 100% along with continous or pulsed ultrasonics. These smaller, highintensity tips are ideal for processingsmaller samples in Eppendorf vialsor similar vessels. Sizes range from3/32" to 1/4". The SFX250 and SFX550 are part of the new SFX Series of Sonifiers from Branson, designed to bring the industry’s most advanced sample-processing capabilities to your laboratory. The SFX Series brings a new level of ease, precision, and repeatability with advanced energy and temperature control modes, process monitoring capabilities, and programming features. In Energy Mode, the SFX Series power supply manages the processing cycle to deliver a precise, user-determined input of ultrasonic energy (measured in joules), either continuously or pulsed. The SFX Series automatically compensates for any variability, extending or shortening the cycle as needed to deliver the precise energy output. With true temperature control (requires separate temperature probe), the SFX Series power supply maintains the temperature of the sample to within a user-specified range, automatically adjusting the ultrasonic pulse length to regulate the temperature rise and prevent overheating. For assured repeatability and precision on a greater scale, the SFX Series enables users to create and store up to 20 sample-processing programs. Program parameters include continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time, and total on-time/energy; or amplitude as a percentage. In operation, Sonifier SFX Series monitors ongoing processes on a scrollable, digital screen, providing continuous updates of key variables including power level, energy usage, sample temperature, and experiment progress. Features: Click Here to View Product Video INCLUDED: The Branson SFX550 Sonifier w/ 1/2" Horn includes: - Converter - 1/2" Horn - Cable - Power Cord - Operator's Manual - 1 Year Manufacturer's Warranty

Adattatore AC/DC per frigo - congelatori da trasporto Indel B IN:100-240V 50/60Hz OUT:12V 5A
