Brand
Radwag
Model

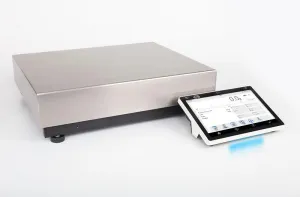

5Y.60.PM Precision Balance
Supplier
Radwag
Location
Radom - Poland
Price
€5,968.00
(ex. VAT)
This item is
for sale
State of item
new
Categories

Radwag 5Y.60.PM Precision Balance

Radwag€5,968.00 (ex VAT)
item image

Description by the supplier

Fast and Stable Measurement

It only takes a second for the balance to display the final measurement result.


Weighing Heavy Loads with High Accuracy

On the large weighing pan of a PM balance, you can weigh a load of 120 kg with a readability of 0.2 g and second-to-none repeatability.


Minimum Eccentricity Error Over the Entire Range

PM balances can be used to determine the mass of irregularly shaped components with a centre of gravity that is significantly shifted from the weighing pan axis.


Parameter Stability Over Time and After Transport

The mechanical design is resistant and robust, allowing you to maintain the correct metrological parameters after transport and despite long and intensive use.


Weighing Pan Dimensions Adapted to the Accuracy of the Balance

Weigh with the highest readability of 0.01 g on the 200 x 185 mm weighing pan and with a readability of 0.2 g on the 500 x 400 mm weighing pan.


21 CFR Part 11


Do you work in the pharmaceutical industry? Do you need a digital signature?


We are offering the laboratory balance which as a standalone fully meets the requirements of

21 CFR Part 11/ EU GMP Annex 11.


- Full data security


- Electronic signatures


- Validations


- Electronic records


- Audit trails


New, lmproved


The new, taller and larger MONOBLOCK®


enables the best repeatability and speed


in its class of weighing platforms.


5Y Terminal


With Terminal 5Y you get a 10-inch display, Digital Weighing Auditor, multi-step user


verification, ambient light alerts, hotspot, RFID*, live note voice and text notes, voice commands


for the balance and handy measurement history within the handy library widgets


Modbus TCP/IP


is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.


A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.


THBR 2.0 System


Cooperation with THBR 2.0 System for ambient conditions monitoring.


* RFID ISO/IEC 14443 Type A, 13,56 MHz

Product details
FunctionsAutotest, Dosing, Percent Weighing, Parts counting, Peak hold, Formulation, Newton unit measurement, Statistics, Checkweighing, IR sensors, GLP Procedures, Animal weighing, Pipettes Calibration, Air density correction, Density determination, Differential weighing, Ambient conditions monitoring, Statistical Quality Control, Packaged Goods Control, ALIBI Memory, Wi-Fi
