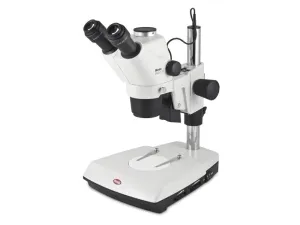

Motic SMZ-171-TLED Stereo Trinocular Microscope with LED Illumination
Magnifaction Range
7.5x - 50x
Standard Working Distance
110mm
Optical System
Greenough
Features
- Stereo microscope
- Trinocular head
- Greenough optical system
- 7.5x - 50x standard magnification
- 110mm standard working distance
- Pole stand with large working area
- Incident illumination - 3w LED
- Transmitted illumination - 3w LED
- Wide variety of options
The Motic SMZ-171-TLED is a stereo microscope, featuring high quality Greenough optics. Designed for versatility, the SMZ-171-TLED can be used in a variety of fields, from medical applications to industrial quality control. This rugged microscope is built to provide clear and distortion free images through many years of daily use.
In its standard configuration, the SMZ-171-TLED has a working distance of 110mm, providing ample room for dissection instruments and sample manipulation. Working distance refers to the amount of space between the unit’s base and the unit’s objective, and is an important feature of any stereo microscope – the larger this number, the more room users have to operate.
Magnification is controlled by a zoom knob on the microscope’s side, enabling users to adjust between 7.5x and 50x in one continuous motion. The zoom knob also contains five indents, so that precise magnifications can be quickly and accurately repeated. This is especially important when taking measurements with micrometers, reticules, and processing software. Motic also offers a wide variety of optional objectives and eyepieces, greatly expanding the magnification range from 2.25x to 200x.
The SMZ-171-TLED is presented in a modular format and can be easily modified by the user. A large number of optional illumination sources, stands and filters are available, enabling users to customize the scope to suit their specific application. It is also available in both binocular and trinocular formats. Digital documentation of your work is made simple with any of Motic’s digital microscopy cameras – the Moticam. With over 20 models to choose from, these range from standard resolution, to research grade instruments with integrated cooling devices.INCLUDED:
The Motic SMZ-171-TLED Stereo Trinocular Microscope with LED Illumination includes:
- 10x Eye Piece
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 5 Year Manufacturer's Warranty
Optical System | Greenough |
Observation tube | Trinocular head |
Interpupillary distance | 48-75mm |
Trinocular light split | 100:0 / 0:100 on right eyepiece |
Inclination | 45° inclined |
Eyepieces | N-WF10X/23mm with diopter adjustment, +/- 5 diopter |
Objectives system | Zoom system, ratio 1:6,7 |
Objectives magnification | 0,75X ~ 5X 7.5x - 50x |
Working distance | 110mm |
Stand | Pole type stand with transmitted illumination and cold light input |
Base | 303x239mm |
Column / Arm | Ø 32mm, 232mm hight |
Head holder | for Ø 32mm column and Ø 76mm head with incident illumination |
Focus mechanism | Coarse focusing system with tension adjustment |
Focusing stroke | 49mm |
Incident illumination | 3W LED with intensity control |
Transmitted illumination | 3W LED with reflector and intensity control |
Transformer | Internal |
Power supply | 100-240V (CE) |
Dimensions (mm) | 303 x 239 x 405 |
Weight | 6.2Kg |
