Motic PA53MET-BD-T-3D Trinocular Upright Industrial Microscope w/ Analysis Professional Software Suite
Stage Type
Mechanical stage with low-position coaxial control and round/oval inserts
Optical System
Color Corrected Infinity Optical System (CCIS®)
Illumination
Koehler Quartz halogen 12V/100W with intensity control, External lamphouse
Features
- Robust manufacturing quality for a long lifetime
- New BF/DF objectives for metallurgy
- Sufficient power resources
- A flexible upgrade for digital results

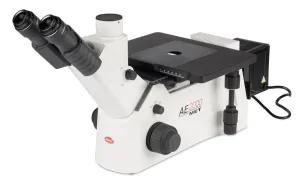

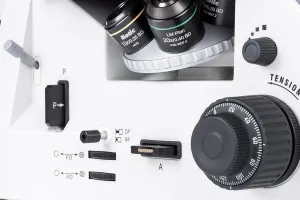

Motic AE2000MET Trinocular Inverted Industrial Microscope, 100W Illumination
Motic’s AE2000MET is an Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulky samples within industries such as automotive, machinery, and metal fabrication. Large metal or die cast parts, too large to view under a conventional upright microscope, can easily be examined for failure analysis, material research or quality control.INCLUDED:
The Motic AE2000MET Trinocular Inverted Industrial Microscope, 100W Illumination includes:
- Power Cord
- Operator's Manual
- Manufacturer's Documentation
- 5 Year Manufacturer's Warranty
Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
Optical system | Color Corrected Infinity Optical System (CCIS®) |
Inclination | 45° inclined |
Trinocular light split | 100:0/20:80 |
Interpupillary distance | 48-75mm |
Diopter adjustment | On both eyepieces, +/- 5 diopter |
Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
Nosepiece | Side facing quintuple |
Objective classification | - |
Objectives | - |
Objective mounting thread | M32 |
Stand type | Inverted |
Stage | Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts |
Stage size | 280x192mm |
Travel range X&Y | 50x50mm |
Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
Fine focus precision | 2µm |
Focusing stroke | 10mm |
Transmitted illumination | Koehler Quartz halogen 12V/100W with intensity control, External lamphouse |
Illumination features | Sleeping mode |
Transformer | External |
Power supply | 100-240V (CE) |
Accessories included | Dust cover, power cord, Allen key, blue filter |
Dimensions LxWxH | 673x280x345mm |
Weight Net | 13kg |
Standard contrast technique | Brightfield |
Polarization | Optional sliders |
Darkfield | Optional objectives |
