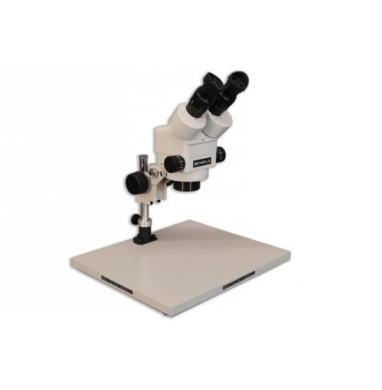

Meiji EMZ-8UD Zoom Stereo Microscope with Wide Surface Stand
Product Description
-
Microscope Head (EMZ-8UD):
- Special inlet for single arm fiber optic light guide enabling illumination parallel to optical path
- Designed for high-contrast imaging of difficult specimens under oblique illumination (e.g., holes, cracks, IC chips, liquid crystal)
- Zoom ratio: 6.5:1 with parfocal zoom range from 0.7x to 4.5x
- Magnification range: 7x – 45x (using 10x eyepieces), extendable to 2.45x – 202.5x with auxiliary lenses and eyepieces
- Greenough optical design for improved image flatness, contrast, and bright periphery
- Construction: Binocular, rotatable 360°, cast aluminum alloy
- Field of view: 32 mm to 5.1 mm
- Working distance: 104 mm (extendable from 57 mm to 250 mm with auxiliary lenses)
- Zoom control: dual knobs, detent graduated click-stops, bilateral
- Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, 30x (optional)
- Interpupillary distance adjustable: 54 mm – 75 mm
- Dioptric adjustment: ±5 diopters dual adjustment
- Auxiliary lenses (optional): 0.28x (300 mm WD), 0.35x (250 mm WD), 0.44x (184 mm WD), 0.5x (174 mm WD), 1.5x (57 mm WD), 2x (36.6 mm WD)
- Mount fitting: 84.5 mm diameter focus holders
- Top light port: 12.2 mm inlet for fiber optic light guide
-
Eyepieces (MA502):
- Pair of 10x super widefield eyepieces
- Field number: 23 with 25 mm reticle mount
- Eye relief: 16 mm
- Focal length: 25 mm
- Outer diameter: 30.5 mm
-
Stand (KBL):
- Wide ergonomic laminate board stand, dimensions 380 mm x 330 mm x 20 mm (~15" x 13")
- Requires external illumination; no built-in light source
- Integrated F coarse focus block with rack and pinion mechanism, slip clutch, tension adjustment
- Focus travel: 55 mm
- Mounting post: 20 mm diameter, 71 mm long
- Fits 84.2 mm diameter openings to accommodate EM series microscope bodies
- Optional 100 mm extension pillar available for taller specimens
-
General Features:
- Multi-coated optical components correcting chromatic and spherical aberrations
- Rugged all-metal aluminum alloy construction with chemical-resistant finish
- Compact and lightweight design with interpupillary and diopter adjustments
- Observation tubes inclined at 45° for ergonomic, fatigue-free viewing
- Modular system allowing customizable configurations with auxiliary lenses, stands, illuminators, and accessories
- Wide application range: semiconductor inspection, medical devices, biological research, industrial and educational use
-
Included Accessories:
- EMZ-8UD Binocular zoom stereo microscope body
- MA502 10x super widefield eyepiece pair
- KBL wide surface ergonomic stand
- Dust cover (MA703)
- Rubber eyeguards/eyeshields (MA600)
- Instruction manual
- Limited lifetime warranty card
-
Manufacturing Origin: Made in Japan
-
Warranty: Limited lifetime warranty
