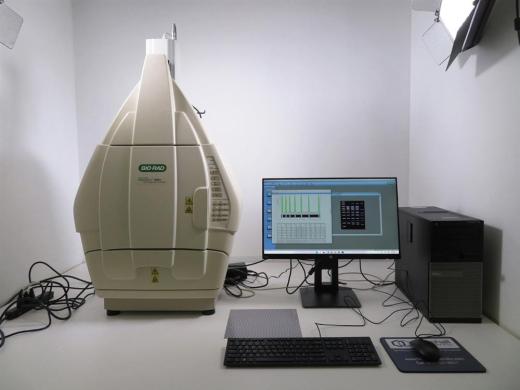

Bio-Rad ChemiDoc XRS+ CCD-Based Multi-Mode Imaging System
Product Description
The Bio-Rad ChemiDoc XRS+ Imaging System features:
- Dynamic Range: >4.0 orders of magnitude
- Pixel Size: 6.45 µm (H) x 6.45 µm (V)
- Pixel Density: 65,535 grayscale levels
- Detection Technology: High-resolution, high-sensitivity CCD camera enabling fluorescence, colorimetry, densitometry, chemiluminescence, and chemifluorescence detection
- Software Control: Image Lab software provides automated image capture, analysis, and application-dependent optimization of filters and illumination
- Data Quality: Ensures reproducible, quantitative data for comparisons across experiments
- Accuracy Enhancements: Tailored flat fielding for improved fluorescence and colorimetric accuracy
- System Testing: Fully tested to factory specifications prior to shipment
Designed for versatile molecular biology imaging needs, this modular system supports multiple detection modes to handle a wide sample variety with enhanced sensitivity and automation.
Item Stats
Product details
| Chemiluminescence | Yes |
| Fluorescence | Yes Note: Use the optional XcitaBlue kit if performing SYBR® Safe DNA applications, because the UV to blue conversion screen allows you to visualize DNA samples while protecting against UV damage. |
| Colorimetry/densitometry | Yes |
| Gel documentation | Yes |
| Maximum sample size | 28 x 36 cm |
| Maximum image area | 26 x 35 cm |
| Excitation Source | Epi-white light and trans-UV (302 nm) are standard (optional 365 nm lamp available); optional trans-white conversion screen and XcitaBlue™ UV/blue conversion screen available |
| Illumination control | 3 modes (Trans-UV, Epi-white, No illumination for Chemiluminescence) |
| Detector | Super Cooled CCD |
| Pixel size (microns) | 6.45 (H) x 6.45 (V) |
| Cooling System | Peltier Cooled, -30°C |
| Filter holder | 3 positions (2 for filters, 1 without filter) |
| Emission filters | 1 included (standard), 3 optional |
| Dynamic range | >4.0 orders of magnitude |
| Pixel density (gray levels) | 65,535 |
| Dynamic flat fielding | Application specific, for all applications |
| Instrument size (L x W x H) | 36 x 60 x 96 cm |
| Instrument weight | 32 kg |
| Operating voltage | 110/115/230 V AC nominal |
| Operating temperature | 10–28°C (21°C recommended) |
| Operating humidity | <70% noncondensing |
