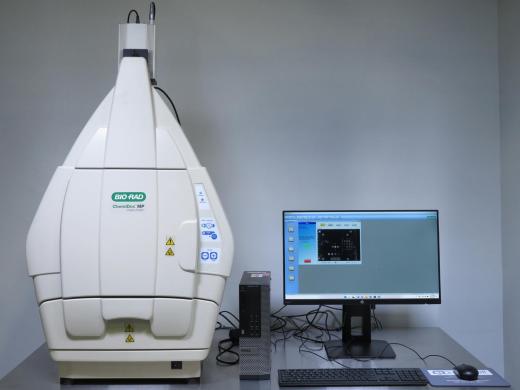

Bio-Rad ChemiDoc MP High-Resolution Gel and Blot Imaging System
Product Description
The Bio-Rad ChemiDoc MP Imaging System is a multimode imaging platform designed for precise quantitation of gels and blots with the following technical specifications and features:
- Applications: Fluorescence, chemiluminescence, colorimetric, and gel documentation
- Pixel Size: 6.45 µm (horizontal) x 6.45 µm (vertical)
- Dynamic Range: Greater than 4.0 orders of magnitude
- Imaging Sensor: Supersensitive, deeply cooled CCD camera optimized for faint sample detection and accurate quantitation
- Light Sources: Built-in UV, white light, and red, green, blue epi-LED illumination within the Universal Hood III enclosure
- Filter Capability: Accommodates up to four emission filters on a six-position filter wheel (four for emission filters, one for calibration disc, one open for chemiluminescence)
- Protocols: User-friendly interface with customizable, application-specific protocols via Image Lab software
- Dynamic Flat Fielding: Ensures uniform image quality and precise quantitation across applications
- Additional Features:
- High-resolution image capture for detailed gel and blot data
- Smart setup guides filter and illumination selection for optimal sensitivity
- Supports colorimetric imaging with included standard filter
- Quality Assurance: Factory tested to meet performance specifications prior to shipping
This system provides flexible imaging modalities suitable for life science research involving protein, nucleic acid gels, and blot analysis with excellent sensitivity and dynamic signal measurement.
Item Stats
Product details
| Chemiluminescence | Yes |
| Fluorescence | Yes Note: Use the optional XcitaBlue kit if performing SYBR® Safe DNA applications, because the UV to blue conversion screen allows you to visualize DNA samples while protecting against UV damage. |
| Colorimetry/Densitometry | Yes |
| Gel Documentation | Yes |
| Maximum Sample Size | 28 x 36 cm |
| Maximum Image Area | 26 x 35 cm |
| Excitation Source | Trans-UV and epi-white are standard (302 nm included with 365 nm available as an option) Optional trans-white conversion screenOptional Xcitablue UV/blue conversion screen. Blue, green, and red epis |
| Detector | Super Cooled CCD |
| Pixel Size (Microns) | 6.45 (H) x 6.45 (V) |
| Cooling System | Peltier Cooled, -30°C controlled |
| Filter Holder | 6-position filter wheel, 1 without filter for chemiluminescence |
| Emission Filters | 1 included (standard), 3 optional (530, 605, 695) |
| Dynamic Range | > 4.0 orders of magnitude |
| Pixel Density (Gray Levels) | 65,535 |
| Dynamic Flat Fielding | Application-specific, for all applications |
| Instrument Size (L x W x H) | 36 x 60 x 96 cm |
| Instrument Weight | 32 kg. |
| Operating Voltage | AC 110 / 115 / 230 V nominal |
| Operating Temperature | 10–28°C (21°C recommended) |
| Operating Humidity | <70% noncondensing |
