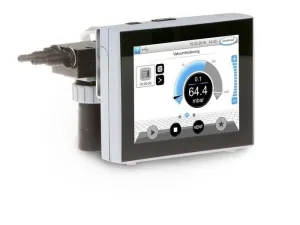

VACUUBRAND VACUU-Select Complete Controller For Lab Scaffold Mounting
The VACUU·SELECT complete controller provides enhanced process efficiency to applications supported by a vacuum source such as a basic pump or a powerful vacuum network. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run pre-defined applications at the touch of a button, or create your own application with simple drag-and-drop editing. The controller is available as a benchtop unit, ready for mounting on lab scaffolding, or as a built-in version for lab casework. The integrated controller includes the VACUU·SELECT vacuum controller, a check valve, and a chemical-resistant solenoid isolation valve. The ceramic vacuum sensor and venting valve are built right into the body of the VACUU·SELECT controller. The compact unit is easy to install and setup. With its intuitive, application-based interface, the controller offers predefined vacuum processes for all common laboratory applications. In the case of solvent evaporation, it detects the boiling pressure and then holds the pressure level stable using two-point control.INCLUDED:
The VACUUBRAND VACUU-Select Complete Controller For Lab Scaffold Mounting includes:
- VACUU·SELECT complete controller for lab scaffold mounting
- Solenoid valve
- Non-return valve
- Integrated ceramic diaphragm vacuum sensor
- Venting valve
- Power supply
- Operator's Manual
- Manufacturer's Documentation
- 2 Year Manufacturer's Warranty
Upper measuring limit in mbar/hPa | 1080 mbar |
Upper measuring limit in torr | 810 torr |
Lower measuring limit in mbar/hPa | 0.1 |
Lower measuring limit in torr | 0.1 torr |
Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure |
Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr |
Vacuum sensor | VACUU·SELECT Sensor |
Temperature coefficient | < 0.15 mbar/hPa/0.11 torr /K mbar/hPa/torr /K |
Vacum connection | Hose nozzle DN 6/10 mm |
Venting valve | Integrated, hose nozzle DN 4-5 mm |
Lower ambient temperature (storage) | -10 °C |
Upper ambient temperature (storage) | 60 °C |
Lower ambient temperature (operation) | 10 °C |
Upper ambient temperature (operation) | 40 °C |
Max. media temperature for continuous operation | 40 °C |
Max. media temperature short term | 80 °C |
Material of outer housing | Robust plastic housing with good chemical resistance |
Protection class IEC 60529 | IP 40 |
Protection class UL50E | Type 1 |
Protection class front side IEC 60529 | IP 41 |
Protection class UL50E front side | Type 2 |
Dimension L in mm | 152 mm |
Dimension B in mm | 127 mm |
Dimension H in mm | 188 mm |
Weight | 2 kg |
Max. current for VACUU BUS (24V DC) | 4 A |
Cable length connection in m | 2 m |
Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
NRTL certification | Yes |
Items supplied | VACUU·SELECT complete controller for lab scaffold mounting, with solenoid valve, non-return valve, integrated ceramic diaphragm vacuum sensor and venting valve. With power supply, ready to use, with manual. |
