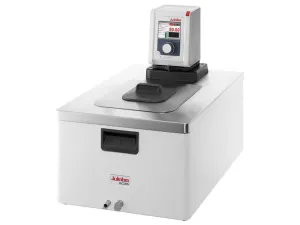

Julabo DYNEO DD-BC26 Heating Circulator, 115V/50-60Hz

Julabo DYNEO DD-BC26 Heating Circulator, 115V/50-60Hz

Working Temperature Range
20°C to 200°C
Heating Capacity
1000W
Fluid Type
Water, Silicone

• Suitable for internal and external applications
• Powerful and infinitely adjustable pressure pump
• Flow rate 27 l/min, pressure 8.7 psi
• Easy switching between internal and external circulation
• Large color TFT display, multilingual interface
• Central rotary knob (controller) simplifies operation
• Integrated programmer for 8 x 60 program steps
• Integrated external Pt100 connection
• USB port
• RS232 interface or analog interfaces
• Bath cover included with delivery
• Integrated drain makes emptying liquid easy and safe
• High-quality thermal insulation of the bath tank

The DYNEO™ heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank for temperatures to 200°C. The DYNEO™ DD circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. Systems include insulated stainless-steel tanks with an integrated drain valve.

Features a color TFT display with central rotary knob controller, multi-lingual interface, integrated programmer, Pt100 port for external temperature control. USB connection for external PC control and data-logging; Digital option includes RS232 port; analog option includes analog interface for voltage or current control. PID temperature control provides ± 0.01°C stability. Infinitely variable centrifugal pump capacity of 8-27 L/min with pressure to 1.5-10.2 psi. Class III (FL) according to DIN 12876-1.

• 2 Each Barbed Fitting for Tubing 8 and 12 mm Inner Dia. (Pump Connections M16x1 Male)
• Power Cord
• Operator's Manual
• Manufacturer's Documentation
• 2 Year Manufacturer's Warranty
