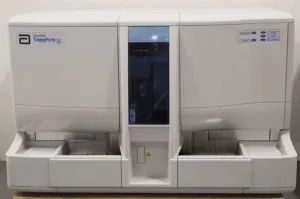

Abbott CELL-DYN Sapphire Hematology System

The CELL-DYN Sapphire hematology system is designed to address routine testing needs of high-volume hematology laboratories and difficult samples in specialty testing environments.

The system features MultiAngle Polarized Scatter Separation (MAPSS) technology plus 3-color fluorescence to give you the unique capability of fully automated, random access monoclonal antibody analysis in a hematology analyzer.

Maximum Throughput (Autoloader Mode): CBC: 105 per hour, CBC + RETC: 69 per hour

Sample Volume: Open Mode 120 μL, Sample Loader 120 μL

Reagents: Only 5 reagents including reticulocytes

WBC and differential: 4 angle optical MAPSS plus 3-color fluorescent flow cytometry, Multiple Scatterplot Analysis

NRBCs: 4 angle optical MAPSS plus red fluorescence; no extra reagent, no reflex testing requirement; Multiple Scatterplot Analysis

Platelets: Dual angle optical analysis, no extra reagent, no reflex testing requirement

Reticulocytes: Patented RNA fluorescent flow cytometry, random and continuous access

Monoclonal: Immuno T-Cell (CD3/4/8) reagent; Immuno Plt (CD61) assay

WBC: 0.0-250.0 x 103/μL (No interference of HGB)

RBC: 0.0-7.50 x 106/μL

HGB: 1.0-25.0 g/dL (Cyanide free)

MCV: 37.0-179 fL

PLTo: 0.0-2000.0 x 103/μL

RETC: 0.0-1500.0 x 103/μL

Data Management: Linux operating system, 10,000 specimen storage with graphics, 25 QC files each with 120 data points. Levey-Jennings graphs. Moving Average programs. Westgard rules. Delta Check. Paired difference. Auto Calibration. Upload/Download of QC data. Rules based auto validation. Transfer of scatter plots. Multiple printer options.

Dimensions (H x W x D): 762 x 1219 x 813 mm

Weight: 170.1 kg
