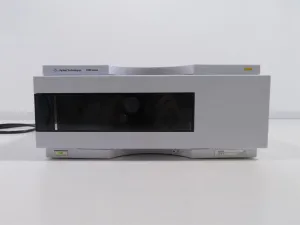

Agilent 1200 HPLC G1321A Fluorescence Detector with Xenon Flash Lamp
Product Description
Agilent 1200 HPLC G1321A Fluorescence Detector
- Wavelength Range (Excitation): 200 to 700 nm
- Wavelength Range (Emission): 280 to 900 nm
- Light Source: Xenon Flash Lamp (20 W normal output, 5 W economy mode)
- Detection Limit: 10 fg Anthracene (excitation 250 nm, emission 400 nm)
- Optical Design:
- High-intensity flash lamp for low detection limits
- Multi-wavelength mode with on-line spectral acquisition and simultaneous signal detection (up to 4 signal wavelengths)
- Fixed 20 nm bandwidth concave holographic gratings for monochromators
- Features:
- Easy front access to flow cell for quick replacement
- Optional cuvette for off-line measurements
- Built-in wavelength accuracy verification
- Adjustable PMT gain and baseline behaviors via timetable programming
- Software & Control:
- Compatible with Agilent ChemStation for LC data control and evaluation
- Can be controlled by Agilent Instant Pilot G4208A or Control Module G1323B for limited spectral data analysis and spectrum printing
- Connectivity: CAN, GPIB, RS-232C, LAN, and APG Remote
- Designed for GLP compliance and easy maintenance
- Fully factory tested before shipping
Item Stats
Product details
| Detection Type | Multi-signal fluorescence detector with rapid on-line scanning capabilities and spectral data analysis |
| Performance Specifications | 10 fg Anthracene, Ex=250 nm, Em=400 nm* RAMAN single wavelength (H2O) > 500 with Ex=350 nm, Em=397 nm, dark value 450 nm, standard flow cell time constant=4 seconds (8 seconds responsetime) RAMAN dual wavelength (H2O) > 300 with Ex=350 nm, Em=397 nm, dark value 450 nm, standard flow cell time constant=4 seconds (8 seconds responsetime) |
| Light source | Xenon Flash Lamp, normal mode 20 W, economy mode 5 W |
| Pulse frequency | 296 Hz for single signal mode 74 Hz for spectral mode |
| Excitation Monochromator | Range: 200 nm - 700 nm and zero-order Bandwidth: 20 nm (fixed) Monochromator:concave holographic grating, F/1.6, blaze: 300 nm |
| Emission Monochromator | Range: 280 nm - 900 nm and zero-order Bandwidth: 20 nm (fixed) Monochromator:concave holographic grating, F/1.6, blaze: 400 nm |
| Reference System: | in-line excitation measurement |
| Timetable programing | up to 4 signal wavelengths, response time, PMT Gain, baseline behavior (append, free, zero), spectral parameters |
| Spectrum acquisition: | Excitation or Emission spectra Scan speed: 28 ms per datapoint (e.g. 0.6 s/spectrum 200-400 nm, 10 nm step) Step size: 1-20 nm Spectra storage: All |
| Wavelength characteristic | Repeatability+/- 0.2 nm Accuracy+/- 3 nm setting |
| Flow cells | Standard: 8 µl volume and 20 bar (2 MPa) pressure maximum, quartz Optional: Fluorescence cuvette for offline spectroscopic measurements with 1 ml syringe, 8 µl volume, quartz |
| Control and data evaluation | Agilent ChemStation for LC, Agilent Instant Pilot G4208A or Agilent Control Module G1323B with limited spectral data analysis and printing of spectra |
| Communications | Controller-area network (CAN), GPIB, RS-232C, LAN, APG Remote: ready, start, stop and shut-down signals |
