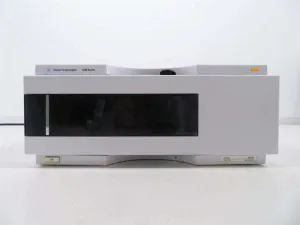

Agilent 1200 HPLC G1315C Diode Array Detector
Product Description
- Wavelength Range: 190 – 950 nm
- Wavelength Accuracy: ± 1 nm
- Drift: 2 × 10⁻³ AU/hr at 254 nm
- Spectral Resolution: 1024 diodes, 1 nm slit
- Light Source: Combined deuterium and tungsten lamps for high intensity and low detection limits
- Slit Settings: Programmable slit from 1 to 16 nm for sensitivity and baseline noise optimization
- Software: Controlled and data evaluated via ChemStation software
- Performance Features:
- Automated wavelength verification for performance tracking
- Extensive diagnostics including error detection and leak handling
- Temperature management system for baseline stability under variable ambient conditions
- Functional Capabilities:
- Verifies separation quality using peak purity, multiple signals, and spectral libraries
- Enables faster sample characterization by exploring spectral landscape
- Compliance: Slit settings stored and reported with raw data for GLP traceability
- Fully tested to factory specifications prior to shipment.
Item Stats
Product details
| Type | Specification |
| Detection type | 1024-element photodiode array |
| Light Source | Deuterium and tungsten lamps |
| Wavelength range | 190 – 950 nm |
| Short term noise (ASTM) single and multi-Wavelength | ± 1 × 10-5 AU at 254 and 750 nm |
| Drift | 2 × 10-3 AU/hr at 254 nm |
| Linear absorbance range | > 2 AU (upper limit) |
| Wavelength Accuracy | ± 1 nm |
| Wavelength bunching | 1 – 400 nm |
| Slit width | 1, 2, 4, 8, 16 nm |
| Diode Width | < 1 nm |
| Flow Cells | Standard: 13 µl volume, 10 mm cell path length and 120 bar (1760 psi) pressure maximum Semi-Micro: 5 µl volume, 6 mm cell path length and 120 bar (1760 psi) pressure maximum High pressure: 1.7 µl volume, 6 mm cell path length and 400 bar (5880 psi) pressure maximum 500 nano: 0.5 µl volume, 10 mm cell path length and 50 bar (725 psi) pressure maximum |
| Control and data evaluation | Agilent ChemStation for LC |
| Analog outputs | Recorder/integrator: 100 mV or 1 V, output range 0.001 – 2 AU, two outputs |
| Communications | Controller-area network (CAN), GPIB, RS-232C, APG Remote: ready, start, stop and shut-down signals, LAN optional |
| Safety and maintainence | Extensive diagnostics, error detection and display (through control module and ChemStation), leak detection, safe leak handling, leak output signal for shutdown of pumping system. Low voltages in major maintenance areas |
| GLP features | Early maintenance feedback (EMF) for continuous tracking of instrument usage in terms of lamp burn time with user-settable limits and feedback messages. Electronic records of maintenance and errors. Verification of wavelength accuracy with built-in holmium oxide filter. |
| Housing | All materials recyclable |
