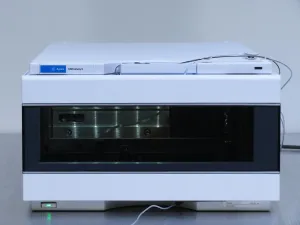

Agilent 1260 Infinity II HPLC G1364F Analytical-Scale Fraction Collector
Product Description
Agilent 1260 Infinity II HPLC G1364F Analytical-Scale Fraction Collector
- Maximum System Flow: 10 mL/min
- Maximum Collection Volume: Approximately 20 mL with 30 x 48 mm tubes or 30 mL with 30 x 75 mm tubes
- Operating Modes: Discrete Fractions, Continuous Flow, Needle Into Location, Droplet Setup
- Features:
- Integrates all standard collection modes, compatible with multiple trigger sources for existing purification methods
- Compact, closed design accommodates up to 216 fractions in vials or 384 fractions in SBS plates, saving bench space
- Integrated delay volume sensor and automated calibration optimize sample recovery
- Preconfigured tubing kits enable easy setup, minimizing peak dispersion at any flow rate
- Clustering functionality allows doubling or tripling of fraction capacity
- Rapid vessel-to-vessel movement reduces substance loss during fraction transfer
Operational Context:
Optimized for analytical-scale compound purification of nanogram to milligram quantities with typical flows from 0.1 to 10 mL/min. Compatible with SBS plates and four tube sizes varying in length. The fraction collector features a compact, closed-box design for minimal bench footprint and seamless integration with InfinityLab Analytical Systems. The built-in fraction delay sensor automates delay calibration to maximize substance recovery, and preconfigured capillary kits reduce peak dispersion to ensure maximum purity. Capacity can be expanded by clustering up to three modules.
All units are factory-tested to meet performance specifications prior to shipping.
Item Stats
Product details
| Delay Volume (in ul) | Fraction collector inlet to diverter valve: ~50 (typical, depends on length of the tubing) Diverter valve: ~15 Diverter valve to needle: ~10 Needle: ~4 |
| Maximum System Flow | 10 mL/min |
| Maximum Collection Volume | ~20 mL with 30 x 48 mm (OD x L) tube ~30 mL with 30 x 75 mm (OD x L) tube |
| Maximum Capacity | 3 fraction collectors in parallel plus one recovery fraction collector |
| Cooling | Optional (with additional G1330B), performance depending on ambient conditions and the volume of collected fractions |
| Trigger Modes | Time slices Peak (threshold, up- / downslope) Timetable (combination of time intervals and peak) Manual trigger (supported only with Agilent Instant Pilot G4208A) |
| Trigger Sources | G7115A, G7165A, G7114A, G6120BA, G6130BA, G7121A, G4260B, G7162A |
| Operating Modes | Discrete fractions: default mode for all vessels. The flow is diverted to waste, while moving from one vessel position to the next vessel position Continuous flow: optional, available only when using deep well plates. It is possible to move from one well plate position to the next one without diverting the flow into the well plate to waste Needle into location: Needle pushes into the vessel as deep as specified, for the use with capped vials and test tubes and well plates with closing mats Droplet setup mode: enables the fraction collector to collect small fractions without bubbles. The tip of the fraction collector needle initially moves down to the bottom of the well. Then it slowly moves upwards while the fraction is collected. |
| Maximum Time to Move Between Neighboring Vessels | Movement in x-direction: < 0.15 s Movement in y-direction: < 0.3 s |
| Diverter Valve | 3/2 valve, with switching time < 100 ms |
| Maximum Pressure | 6 bar at the diverter valve during switching |
| Plates/Trays | 4 x well-plates full tray (MTP), only one type of well-plates can be used at a time in one tray |
| Fraction Containers | 30 x 48 mm (OD x L) tubes, ~20 mL / tube 25 x 48 mm (OD x L) tubes, ~15 mL / tube 16 x 48 mm (OD x L) tubes, ~11 mL / tube 12 x 48 mm (OD x L) tubes, ~8 mL / tube |
| Maximum Tube Height | 48 mm with long needle assembly G1367-87200 75 mm with short needle assembly G1364-87202 |
| Dimensions (H x W x D) | 8 x 13.5 x 17 in. (20 x 34.5 x 44 cm) |
| Weight | 29.8 lb. (13.5 kg) |
| Electrical Requirements | 100-240V, 50/60Hz |
