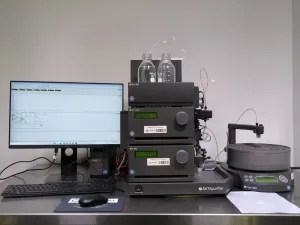

GE AKTA Purifier 100 FPLC System with UPC-900 Monitor
Product Description
The GE AKTA Purifier 100 FPLC System is a modular liquid chromatography platform designed for fast and reliable purification of proteins, peptides, and nucleic acids at microgram to milligram scales.
- Flow Rate Range: 0.001 to 100 ml/min (operationally 0.001 to 10 ml/min)
- Pressure Range: 0 to 10 MPa (tested up to 25 MPa in description)
- Absorbance Range: 0.01 to 5 AU (full scale)
- Includes UPC-900 Monitor for chromatography detection
- Supplied with Unicorn 5.31 operating system for system control and monitoring
- Tested components: P-900 pump for flow accuracy, UPC-900 Monitor with Nal test solution, pH/C-900 modules for communication with pH probe and conductivity cell, motor valves, and Frac-920 fraction collector functionality
- Complete package features Dell Windows 7 Datastation and 180-day parts & labor warranty
- Note: System includes green 0.75 mm PEEK tubing; orange 0.5 mm tubing shown is not included
- Additional cost for pH probe and holder (not included)
This system represents a precise and versatile solution for preparative liquid chromatography workflows in protein and nucleic acid research.
Item Stats
Product details
| Flow Rate Range | Isocratic mode: 0.01 to 100 ml/min in steps of 10 ul/min Gradient mode: 0.01 to 100 ml/min in steps of 10 ul/min Double mode: 0.01 to 200 ml/min in steps of 10 ul/min |
| Pressure Range | 0 to 10 MPa (100 bar, 1450 psi) |
| pH Stability Range | 1 to 13 (1 to 14 with <1 day exposure) |
| Viscosity | Max 5 cP |
| Flow Rate Accuracy | ± 2% or 20 ul/min, whichever is greater |
| Flow Rate Reproducibility | Flow rate ≥ 0.5 ml/min: rsd < 0.5% |
| Gradient Composition | Accuracy: < ±1% at 0.05 to 10 ml/min Reproducibility: rsd < 0.25% at 0.5 to 100 ml/min |
| Pressure Sensor | Range: 0 to 27.5 MPa Offset error: < 0.05 MPa Scale error: < ±2% |
| Total Volume Between Inlet and Outlet | < 800 ul/module |
| Absorbance range | 0.01 - 5 AU (full scale) |
| Autozero range | -0.2 - 2.0 AU |
| Baseline adjust Adjustable | 0-100% of full scale |
| Wavelengths | Hg lamp, fixed: 254 and 280 by changing filter:313, 365, 405, 436 and 546 nm Zn lamp: 214 nm |
| Linearity, 5 mm cell | <3% up to 2 AU at 254 nm <5% up to 1 AU at 280 nm |
| Static noise | short term: 40x10-6 AU at 254 nm (typically 6x10-6 AU at 254 nm) long term: 40x10-6 AU at 254 nm |
| Static Drift | ±100x10-6 AU/h at 254 nm |
| Flow Sensitivity | 2x10-4 AU min/ml |
| Max Flow Rate | 0.001 to 10 ml/min |
| Max Pressure | 12ml chamber: 10 MPa at 0.1 to 100 ml/min (100 bar, 1450 psi) 0.6, 2, and 5ml chambers: 25 MPa at 0.001 to 100 ml/min (250 bar, 3625 psi) 90 ul and 0.2 ml chambers: 35 MPa at 0.001 to 5 ml/min (250 bar, 5075 psi) |
| pH Stability Range | 1 to 13 (1 to 14 with <1 day exposure) |
| Viscosity | Max 5 cP |
| Internal Volume | 6 interchangeable mixing chambers: 90 ul, 0.2, 0.6, 2, 5, and 12 ml |
| Mixing Principle | 1 static chamber and 1 dynamic chamber |
| Inlet and Outlet Tubing | UNF 10 to 32 thread profile |
| Capacity | 95 fractions in 10-18 mm tubes |
| Depth | 400 mm |
| Flow Rate | < 100 ml/min |
| Height | 250 mm |
| Operating Temperature | 4° to 40°C |
| pH Stability Long Term | 1 – 13 |
| pH Stability Short Term | 1 – 14 |
| Program Memory | 99 programs |
| Rack Designation | 95 x 10-18 mm (Standard) 175 x 12 mm and 40 x 30 mm (Optional) |
| Relative Humidity | 20 to 95% (non condensing) |
| Time Mode | 0.01 to 9.999 min |
| Volume Mode | 0.1 to 999 ml |
