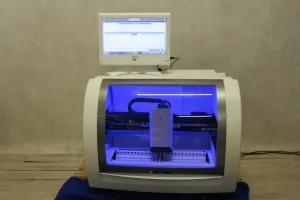

Becton Dickinson BD Max Automatic Real-time PCR System

The BD MAX System is designed for in vitro diagnostic use, facilitating FDA-cleared nucleic acid testing in clinical labs. It automates the extraction and purification of nucleic acids from various specimens, and performs amplification and detection of target sequences using fluorescence-based real-time PCR.

Capabilities include independent extraction and purification, PCR amplification across 24 lanes, and real-time product detection. It's equipped with an external barcode reader for Sample Buffer tube identification and an internal barcode reader for Work List verification. The System supports multiplex reactions through up to five wavelengths, enabling qualitative, quantitative, and melt sample analysis.

• Integrated, fully-automated extraction and thermocycling
• Processes up to 24 specimens per run
• On-board lysis and pre-filled reagent strips
• Real-time PCR with twin 24-lane microfluidic readers
• Multi-color optics for standardized workflow
• Rapidly expanding test menu and open-system adaptability
• Minimal hands-on time per sample
• CLIA moderate complexity, user-friendly interface
• All-in-One computer for control, calibration, data handling
• Touchscreen and icon navigation available

• Thermal cycling temperature control
• Sample transfer liquid handling head
• Onboard amplification reaction readers
• Software for patient info, operation monitoring, result reporting
• USB data download and LIS connectivity

Dimensions: 940 x 755 x 725 mm; Weight: 113 kg
