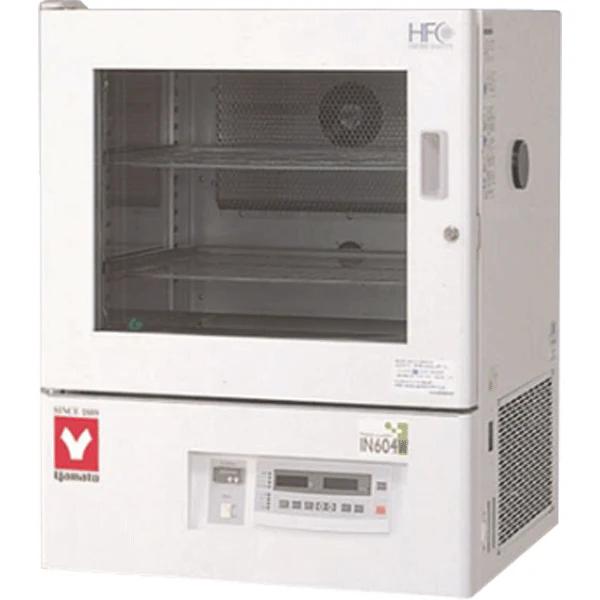

Yamato IN Series Programmable Refrigerated Forced Convection Incubator IN-604W-220V
Product Description
- Operation and Functions:
- High accuracy temperature control and uniform temperature distribution
- Triplex glass door system (large dual glass door + inner door) for improved heat retention (model IN-604W)
- Inner glass door maintains temperature during observation
- Interior light for sample visibility
- Optional slide shaker table available for easy sample handling
- Technical Specifications:
- System: Forced air convection
- Operating Temperature Range: -10°C to +50°C
- Temperature Adjustment Accuracy: ±0.3°C (continuous operation), ±1.0°C (cycled operation)
- Temperature Distribution Accuracy: ±1.0°C at 37°C (continuous operation)
- Max Temperature Reach Time (20→50°C): ~20 min
- Min Temperature Reach Time (20→-10°C): ~55 min
- Interior: Stainless steel
- Exterior: Chrome free electronic galvanized plated steel with chemical-resistant baking finish
- Observation Window: 516 mm (W) x 416 mm (H) with key
- Insulation: Styrene foam
- Refrigerator: Air-cooled fully enclosed 250W compressor
- Refrigerator Medium: R134A
- Defrosting: Manual ON / Auto OFF, timer and cycle operation
- Blower Fan: Axial fan
- Heater: 550W iron-chrome wire heater
- Sensors: Pt100Ω platinum resistance temperature detector for control; K-thermocouple for overheat prevention
- Cable Port (right side): 50 mm inner diameter
- Temperature Control: PID control with digital setting, ▲▼ keys
- Display: 4-digit orange LED + VFD fluorescent for measured temperature
- Timer: 0 min to 999 hrs 59 min resolution 1 min, programs up to 32 steps with repeat
- Additional Functions: Accumulated timer up to 49,999 hrs, calibration offset, clock display
- Safety Devices: Self-diagnostics (sensor error, heater disconnection, SSR short-circuit, relay error), key lock, overcurrent ELB, overheat prevention
- Internal Dimensions (W x D x H): 600 x 477 x 500 mm
- External Dimensions (W x D x H): 710 x 645 x 913 mm
- Internal Capacity: 143 liters
- Shelf Load Capacity: 15 kg per shelf
- Shelf Steps: 13 steps with 30 mm pitch
- Power Supply: AC115V 10.5A (plug), AC220V 7.5A (no plug)
- Weight: Approximately 89 kg
- Included Accessories: 3 stainless steel shelves, 6 shelf brackets, 2 door keys
- Optional Items: Stand, additional shelves, cable ports (ø30/50 mm), recorder, warning light combinations, observation window, temperature output (4-20 mA), external alarm and time-up output terminals
Item Stats
Product details
| System | Forced air convection |
| Operating Temperature Range | -10°C~+50°C |
| Temperature Adjustment Accuracy | ±0.3°C (refrigerator in continuous operation) / ±1.0°C (refrigerator in cycle operation) |
| Temp. Distribution Accuracy | ±1.0°C (refrigerator in continuous operation at 37°C) |
| Max. Temp. Reaching Time | 20~50°C ~20min |
| Minimum Temp. Reaching Time | 20~-10°C ~55min |
| Interior Material | Stainless steel |
| Exterior Material | Chrome free electronic galvanized plated steel plate chemical proof baking finish |
| Observation Window | W516 x H416mm (with key) |
| Heat Insulation Material | Styrene foam |
| Refrigerator | Air-cooled fully closed compressor 250W |
| Refrigerator Medium | R134A |
| Defrosting Mechanism | Manual ON / Auto OFF, Timer operation, Cycle operation |
| Blower Fan | Axial fan |
| Heater | Iron-chrome wire heater: 550W |
| Sensor | Platinum resistance temperature detector: Pt100Ω (temp. controller), K-thermocouple (overheat prevention device) |
| Cable Port (Right Side) | I.D.: 50 mm |
| Temperature Control | PID control |
| Temperature Setting | Digital setting with ▲▼ keys |
| Temperature Display | Measured temperature: 4-digit orange LED digital display + VFD fluorescent display |
| Timer / Timer Resolution | 0 min. ~ 999 hrs. 59 min. / 1 min. |
| Operation Function | Fixed temperature, auto stop, auto start, program (up to 32 steps, repeat operation) |
| Additional Functions | Timer function (accumulated time to 49,999 hrs), calibration off-set function, clock display |
| Safety Device | Self diagnostic function (Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention function), Key lock, Over current ELB, Overheat prevention device |
| Internal Dimensions W X D X H | 600 x 477 x 500 mm |
| External Dimensions W X D X H | 710 x 645 x 913 mm |
| Internal Capacity | 143L |
| Shelf Plate Load | 15kg / pc. |
| Shelf Rest Step Number / Pitch | 13 steps / 30mm |
| Power Supply (50/60Hz) | AC115V 10.5A (with plug)AC220V 7.5A (no plug, round terminal) |
| Weight | ~89kg |
| Included accessories | Shelf / Shelf Brackets3 pcs. / 6 pcs. stainless steel punched metal |
| Door Keys | 2 keys |
| Optional Items | Stand, additional shelf, cable port (ø30/50mm), recorder, warning light combination (stand-by/operation/error), observation window, temperature output terminal (4-20mA), external alarm output terminal, time up output terminal |
