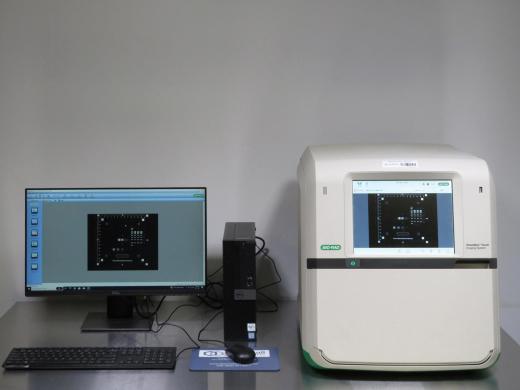

Bio-Rad ChemiDoc Touch Imaging System for Multifunctional Gel and Blot Imaging
Product Description
Applications:
- Chemiluminescence
- Fluorescence
- Colorimetry/Densitometry
- Gel documentation
Pixel Size: 4.54 x 4.54 µm
Dynamic Range: > 4.0 orders of magnitude
Key Features:
- Compact design with deeply cooled 6MP CCD detector for high-quality imaging
- Multitouch 12.1-inch display with intuitive user interface
- Dynamic autoexposure modes optimized for fluorescent and visible light applications
- Integrated UV transilluminator and white LED epi illumination for diverse imaging needs
- Automated filter wheel with emission filters for optimized detection
- Precalibrated autofocus and flat fielding ensure consistent image quality
- Onboard computer system: 4 GB RAM, 60 GB storage
- Thermoelectric cooling system reaching -25°C to reduce noise
- Compatible with Bio-Rad Image Lab Touch software for acquisition; analysis requires Image Lab 5.2+ on a separate Windows PC
- Supports sample imaging area up to 16.8 x 21 cm, maximum thickness 5 mm
This system is designed for advanced, sensitive gel and western blot imaging, streamlining workflows through automated detection settings and a user-friendly touch interface.
Item Stats
Product details
| Chemiluminescence | Yes |
| Fluorescence | Yes |
| Colorimetry/Densitometry | Yes |
| Gel Documentation | Yes |
| Workflow Automated Selection | Application drive, tray-based imaging |
| Autofocus | Precalibrated focus for any zoom setting |
| Image Flat Fielding | Dynamic; precalibrated and optimized per application |
| Autoexposure | 2 user-defined modes (rapid or optimal) for chemiluminescent applications 2 user-defined modes (intense or faint bands) for fluorescent and visible applications |
| Touch Screen Functionality | Multitouch capable 12.1 in. (30.73 cm) display Display resolution of 1024 x 768 pixels |
| Onboard Computer System | 4 GB RAM 60 GB disk space 4 USB ports |
| Maximum Sample Thickness | 5 mm |
| Maximum Image Area (L x W) | 16.8 x 21 cm |
| Excitation Source | Trans-UV 302 nm (standard) Epi-white (standard) Trans-white (requires white sample tray, not included) Trans-blue (requires blue sample tray, not included) |
| Detector | Deeply Cooled CCD, 6MP |
| Pixel Size | 4.54 x 4.54 µm |
| Cooling System | Thermoelectric, setpoint -25°C |
| Filter Wheel | Automated |
| Emission Filters | 535 - 645 nm standard filter |
| Dynamic Range | > 4.0 orders of magnitude |
| Pixel Density (Gray Levels) | 65,535 |
| Instrument Size (D x W x H) | 25 x 20 x 21 in. (62.6 x 50 x 54.3 cm) |
| Instrument Weight | 78 lb. (32 kg) |
| Operating Voltage | 100 to 240 VAC, 50/60Hz |
| Operating Temperature | 10°C to 28°C |
| Operating Humidity | 10 to 80% relative humidity (noncondensing) |
