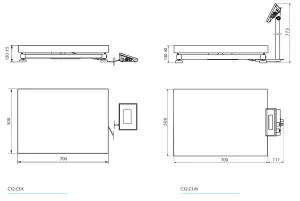

Radwag C32.30.C3.M Multifunctional Scale

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of l (more)oad positioning on weighing platform. H315.4 H/Z The platform scales H315.4 H/Z series is fully made of stainless steel profiles with stainless steel weighing platform. The scale features 4 load cells, and it is prepared for mounting as a pit version. The device comes standard with opening weighing platform enabling easy cleaning the area beneath the platform. The H315.4 H/Z series features a stainless steel terminal PUE H315 series with backlit LCD display and function buttons. The terminal is installed on a long cable for easy mounting it on a wall. The scale is powered from mains, RS 232 interface comes standard. Scales is available in dual range version on surcharge. The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.

Stainless steel platform scale with four sensors No matter where you place the load on the platform, (more) the result will always be correct. This is due to the four sensors built into the platform. You will appreciate this especially when weighing an irregularly shaped object. It has been with us for years, and will stay for a long time to come The LCD display has accompanied us for long years. During this time it has proven its reliability. It guarantees the readability of the result from many angles and is energy efficient. Inner power No access to mains power? Power failure? No problem. Thanks to its internal rechargeable battery, the H315 scale works anyway (up to 7 hours). Power supply is available at an extra charge. As standard, the scale is equipped with a RS232 cable, to which you can connect most of the accessories from our range. Not just weighing But also parts counting, percent weighing, animal weighing and peak hold. The power of H315’s working mods. Do you require fast and repeatable weight measurement under difficult conditions? The H315 scale is made for that! Work as you like The PUE H315 terminal sits on a 3-meter cable that allows you to hang the terminal on the wall. This allows you to arrange your weighing workplace in many ways. The power of steel The use of stainless steel guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes. The membrane keyboard is another argument in the discussion of the water resistance of this scale. If you need a dual-range scale, we can make one for you at an extra cost.

If you buy a Multifunctional Scale HY10 by July 31, 2024, you will receive each of these products al (more)ong with a FREE lifetime license for the Workflow Module. Multifunctional scales HY10 series is designed to fast and precise determination of mass in industrial conditions. The HY10 scales features terminal PUE HY10 series in stainless steel housing and a single load cell weighing platform in mild steel powder coated version. The HY10 series scales features mild steel powder coated construction with stainless steel weighing platform. The terminal PUE HY10 series features a 10,1” colourful touch screen display, keyboard with numeric and function keys. The scales enable cooperating with an additional weighing platforms. Additionally, the HY10 series offers full functionality available in the terminal PUE HY10 series: programmable display and function keys, designing custom printout templates, designing text data indicated on terminal display. Multifunctional scales HY10 series are offered with a terminal connected to a weighing platform through a cable. Scales HY10 series is available in dual range version on surcharge. Dedicated Applications Smart Editor The application is intended for scales equipped with the HY10 terminal. It does not require any additional installations. Enter the terminal’s address in the browser address field and log in. The application enables: - remote databases editing - import of images from the graphic file to the scale - labels import from lb file to the scale - creating and preview of report, e.g. Workflow - dosing processes operation Smart Display The application allows to personalise the scale screen and display it on a computer. The Smart Display enables customization of the display screen in a simple and clear way. Place the individual elements on a grid visible on the screen. These elements can be further scaled to suit user needs. When operated directly on the scale, the user gets a new, refreshed look with the possibility of any configuration of the home screen. If the application is operated via a computer browser, it enables remote control of the desktop or setting larger mass indication window. The Workflow Module will improve work in your company. It enables developing a path of customized weighing process adapted to individual requirements of a particular production system, and next sending it to all weighing instruments cooperating with the E2R. The given process is started on the weighing instrument upon operator logging or after selecting a product, a formulation or an ingredient to which it is assigned. Modifications are made with use of convenient and intuitive interface.

The HX7.4 H/Z scale is a device constructed on the basis of a PUE HX7 terminal and a ground-embedded (more) 4-load-cell platform, both manufactured using the AISI 304 stainless steel. The device's high protection class, IP66 / IP68, makes it suitable for use in industry. HX7.4 H/Z Comfort of operation is guaranteed thanks to a clear-cut menu, and a colour display featuring a 9-diode bar graph blinking red and green when signalling current net mass of a load in reference to the scale range or declared min and max thresholds. Housing back is equipped with hermetic communication interfaces such as RS232, RS485, USB, Ethernet, at your disposal there are also digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs. The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. The terminal's system of information is based on databases: users, products, weighings, packaging, formulations, customers, ALIBI memory which guarantees stored data safety. The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous (more) areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component. To operate the scale, order a selected type of the dedicated intrinsically safe power supply. Power supply types: PM01.EX-1 - power supply for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area. PM01.EX-2 - power supply for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area. Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics. The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process. Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not. The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous (more) areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component. To operate the scale, order a selected type of the dedicated intrinsically safe power supply. Power supply types: PM01.EX-1 - power supply for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area. PM01.EX-2 - power supply for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area. Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics. The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process. Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of l (more)oad positioning on weighing platform. H315.4 H/Z The platform scales H315.4 H/Z series is fully made of stainless steel profiles with stainless steel weighing platform. The scale features 4 load cells, and it is prepared for mounting as a pit version. The device comes standard with opening weighing platform enabling easy cleaning the area beneath the platform. The H315.4 H/Z series features a stainless steel terminal PUE H315 series with backlit LCD display and function buttons. The terminal is installed on a long cable for easy mounting it on a wall. The scale is powered from mains, RS 232 interface comes standard. Scales is available in dual range version on surcharge. The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW
