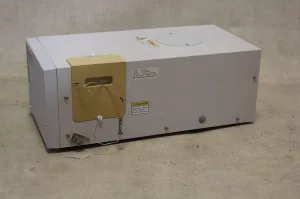

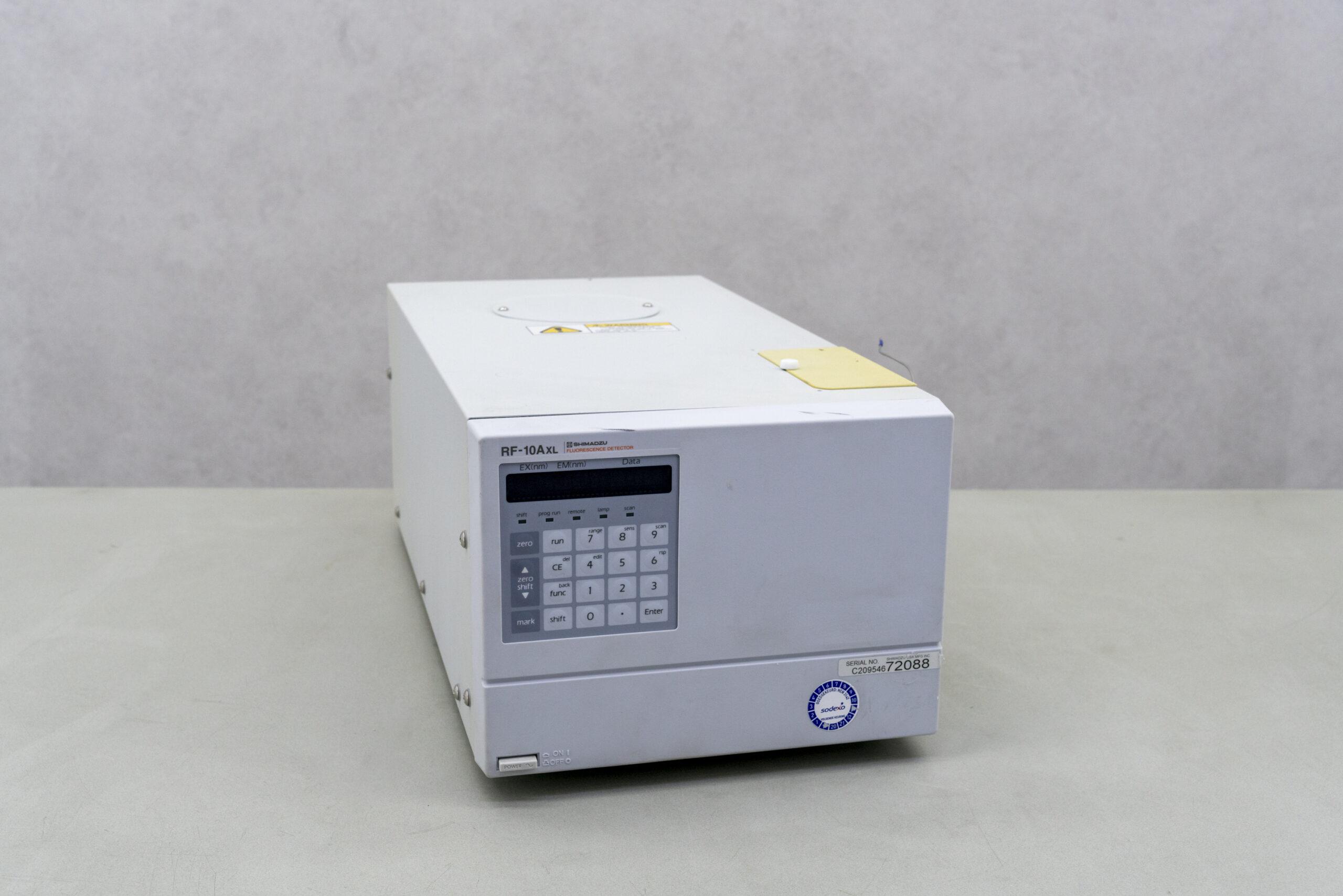

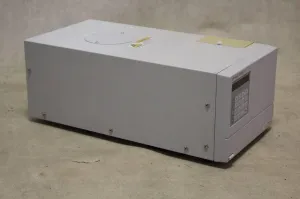

Shimadzu RF-10AXL Fluorescence Detector

The Shimadzu RF-10AXL Fluorescence Detector is powered by a high precision Xenon lamp and features concave, blazed holographic grating monochromators for both excitation and emission, offering a measuring wavelength range from 200 to 650 nm. It ensures a spectral bandwidth of 15 nm on both sides and guarantees wavelength accuracy to ±2 nm with a reproducibility of ±0.2 nm. Offering high sensitivity, this device achieves a signal-to-noise ratio of 300 for the Raman line of distilled water at a 350 nm excitation wavelength and 1.5-second time constant. The photomultiplier detector and the cell (with a volume of 12 L, approx. 20 kgf/cm² pressure, made of SUS316, Quartz, PTFE) enhance the accuracy and reliability of measurements. Wavelength scanning is possible for both excitation and emission, with up to 32-step wavelength programming available. The RF-10AXL is compact in design with dimensions of 260 x 520 x 205 mm and a weight of 17 kg, making it ideal for precise spectroscopic applications in the laboratory.
