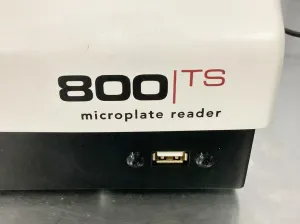

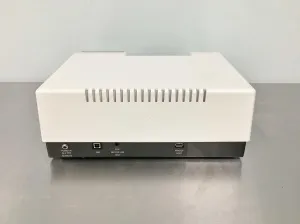

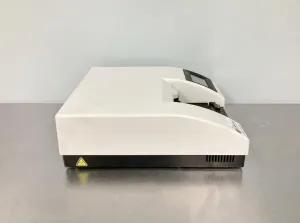

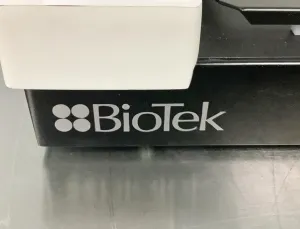

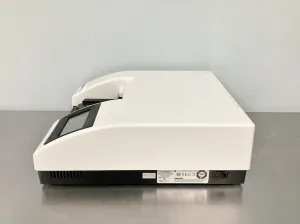

BioTek 800TSUV Absorbance Microplate Reader with UV Range and Temperature Control
Product Description
The BioTek 800TSUV is a compact, high-performance absorbance microplate reader specifically engineered for versatile laboratory applications including ELISA, protein quantification, enzyme kinetics, and cell-based assays. Featuring an expanded wavelength range from 340 nm to 750 nm, this unit enables UV absorbance assays critical for nucleic acid, NADH/NADPH, and other UV-dependent measurements, making it well-suited for molecular diagnostics and biotechnology workflows.
Key technical features include:
- Light source: Halogen bulb ensuring broad spectral coverage and stable absorbance measurements.
- Temperature control: Incubation range of 8°C above ambient up to 50°C with ±0.5°C stability and uniformity at 37°C, enabling precise environmental regulation for live-cell and enzymatic assays.
- Measurement modes: Supports endpoint, kinetic, and sweep read modes, facilitating enzyme kinetics studies and high-throughput applications in bioprocessing and synthetic biology research.
- Measurement range and resolution: Optical density detection from 0.000 to 4.000 OD (normal/rapid at 340–399 nm) and up to 3.000 OD in sweep mode (400–750 nm) with resolution down to 0.0001 OD using Gen5 software.
- Accuracy and repeatability: Maintains high precision with ≤±2.5% variability in UV range and ≤±1.0% in visible spectrum, essential for molecular cloning workflows and quantitative biochemistry assays.
- Throughput: Efficient measurement speeds—e.g., 39 seconds for a 96-well plate at single wavelength normal read—supporting high-throughput screening demands in drug discovery and biomanufacturing pipelines.

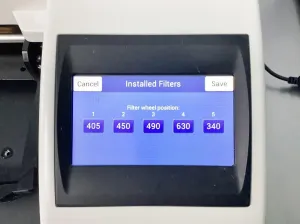

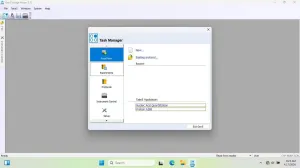

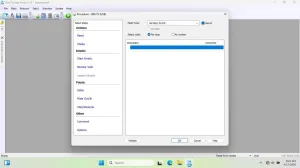

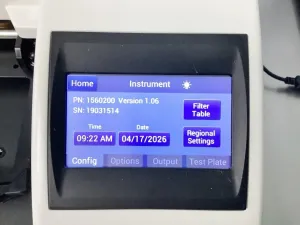

- User interface: Integrated touchscreen controller allows standalone operation with onboard protocol storage; optional Gen5 software enhances data analysis, experimental design, and reporting capabilities.
This benchtop absorbance microplate reader excels in clinical, QA/QC, and research laboratory settings requiring reliable UV-vis absorbance detection. Its robust features and precise temperature incubation make it critical equipment for biotechnology research fields such as molecular diagnostics, synthetic biology investigations, and enzyme kinetics studies. The BioTek 800TSUV is widely adopted in biomedical engineering and biochemical assay environments seeking dependable, flexible microplate reader solutions with UV range specificity.
Item Stats
Product details
| Light Source | Halogen bulb |
| Incubation | 8°C over ambient to 50°C |
| Temperature stability | ± 0.5°C @ 37°C |
| Temperature uniformity | ± 0.5°C @ 37°C |
| Wavelength Range | 340nm to 750nm |
| Measurement Range | Normal / Rapid (340nm – 399nm): 0.000 to 4.000 OD Sweep (400nm – 750nm): 0.000 to 3.000 OD |
| Resolution | 0.001 OD (touchscreen) 0.0001 OD (Gen5) |
| Normal (340nm – 399nm) | ± 2.0% ± 0.010 OD from 0.000 to 2.000 OD @ 340nm |
| Rapid (340nm – 399nm) | ± 2.5% ± 0.020 OD from 0.000 to 2.000 OD @ 340nm |
| Normal (400nm – 750nm) | ± 1.0% ± 0.010 OD from 0.000 to 2.000 OD @ 405nm |
| Rapid (400nm – 750nm) | ± 2.0% ± 0.020 OD from 0.000 to 2.000 OD @ 405nm |
| Sweep (400nm – 750nm) | ± 1.0% ± 0.020 OD from 0.000 to 1.000 OD @ 405nm |
| Normal (340nm- 399nm) | ± 2.5% ± 0.010 OD from 0.000 to 2.000 OD @ 340nm |
| Normal (400nm – 750nm) | ± 1.0% ± 0.010 OD from 0.000 to 2.000 OD @ 405nm |
| Rapid (340nm – 399nm | ± 2.5% ± 0.010 OD from 0.000 to 2.000 OD @ 340nm |
| Rapid (400nm – 750nm) | ± 2.0% ± 0.010 OD from 0.000 to 2.000 OD @ 405nm |
| Sweep (400nm – 750nm) | ± 1.0% ± 0.010 OD from 0.000 to 1.000 OD @ 405nm |
| Normal (340nm – 399nm) | ± 1.5% ± 0.005 OD from 0.000 to 2.000 OD @ 340nm |
| Rapid (340nm – 399nm) | ± 2.0% ± 0.020 OD from 0.000 to 2.000 OD @ 340nm |
| Normal (400nm – 750nm) | ± 0.5% ± 0.005 OD from 0.000 to 2.000 OD @ 405nm |
| Rapid (400nm – 750nm) | ± 1.0% ± 0.010 OD from 0.000 to 2.000 OD @ 405nm |
| Sweep (400nm – 750nm) | ± 2.0% ± 0.020 OD from 0.000 to 1.000 OD @ 405nm |
| 96-Well, Single Wavelength, Normal Read Mode | 39 seconds |
| 96-Well, Dual Wavelength, Normal Read Mode | 73 seconds |
| 96-Well, Single Wavelength, Rapid Read Mode | 26seconds |
| 96-Well, Single Wavelength, Sweep Read Mode | 18 seconds |
| Dimensions | 17x15x7” |
| Weight | 19lbs |
| Power | 120V |
