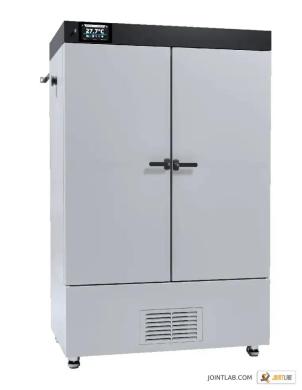

Climatic chamber KKS 750 POL-EKO

CLIMATIC CHAMBERS
KKS SMART POL-EKO SERIES

KKS - DEPENDABLE AND HIGHLY ADAPTABLE

Constructed without compromise, these stabilizing units have found successful applications in numerous fields, including medical, biotechnological, chemical, and industrial laboratories. The units serve a significant purpose in stability testing of pharmaceuticals in accordance with ICH Q1A (R2) - (CPMP/ICH/2736/99).

The chambers maintain consistent temperatures ranging from 0°C to 100°C and effectively regulate humidity levels between 10% to 90% owing to the integrated steam humidifier.

The advanced POL-EKO Smart PRO touchscreen control panel is at the core of this equipment: boasting a 7' display, WiFi connectivity for data communication and transfer, restriction-free programming, and alert systems. Other key features include an internal memory for data storage and graphical representation. It also comes with a standard software for comprehensive PC-based management.

Read ahead to acquaint yourself with the additional remarkable aspects of these climatic chambers.

SUPREME CONTROL

The SMART control panel is unquestionably one of the market's most sophisticated. The user-friendly interface exhibits large icons and temperature values for easy reading and convenient operation.
The latest generation touch screen reacts to commands even while wearing latex gloves and features a vast display. All values are easily readable from any angle, irrespective of the light's intensity.

The SMART PRO provides functionalities that were previously unavailable, including advanced capabilities and efficient data and operational transfer via the LabDesk software.

The numerous features of the SMART PRO panel are discussed in our dedicated post, enlightening you on the SMART and SMART PRO.

UNDERSTANDING SMART PRO PANEL'S BENEFITS?

• 7' sharp colour touch screen
• LAN, USB and WiFi ports for seamless data transfer and communication
• Fast, customizable time and temperature programming across multiple segments
• Adjustable ramps
• Records the minimum, average, and maximum temperature value for each segment
• Visual and audible alarms with color-coded display bar
• In-build memory for program and data storage
• Fan speed control variable between 0 to 100% or 10 to 100% depending on the chamber capacity
• Integrated user manual within the controller
• Repetitive loop function up to 255 times or indefinitely
• Temperature sensor malfunction alert
• Event log with user notifications
• Operative even while wearing latex gloves
• Comprehensive view of set and current parameters in both tabular and graphical form during function
• Priority-based operation on temperature or time
• Creation of user accounts and assigning of rights and passwords
• Memory capacity of 40 user programs
• Data log of 10,000 records per user, viewable on screen in table or graph format
• Direct data download through USB
• Event log

UTMOST QUALITY

Robust. Enduring.

POL-EKO climatic chambers are designed and crafted to guarantee optimum performance. They are an intelligent investment for those planning for a future-oriented laboratory. By choosing these units, you assure yourself precision results that are not only repeatable but also user-friendly.

The KKS Smart series of climatic chambers utilises premium materials and is furnished with crucial accessories, ensuring a complete and standard product.

• Insulated door with secure lock
• Internal glass door
• Acid-resistant stainless steel interior as per DIN 1.4301
• Stainless steel grill shelf (INOX)
• Over-temperature protection of class 3.3 as per DIN 12880
• Mobile via castors
• Quality control protocol (at +25°C and 60%rH)
• Automatic defrost feature
• USB port, LAN (with cable) and Wi-Fi connectivity
• Lab desk software
• 30mm external probe insertion hole located on the left
• Deionized water tank
• Open door alarms

KKS SMART PRO SERIES

POL-EKO offers four climatic chamber models with varying capacities ranging from 109 to 749 litres.
Experience the boundless possibilities.

The POL-EKO climatic chambers exhibit an excellent working range (humidity/temperature) as shown in the image below, with both the KK series (ultrasonic humidifier) and the KKS series (steam humidifier).

STEAM HUMIDIFIER

KKS climatic chambers serve as ultra-silent insect habitat generators (Ex. Drosophila melanogaster) due to their non-ultrasonic steam humidifier. They offer expansive temperature and humidity ranges suitable for testing electronics, plastics or construction materials. Note, typical water (conductivity 125-1250 μS/cm) can serve as a source.

SPECIFICATIONS AND ACCESSORIES

Every element in the POL-EKO models is engineered to make your routine operation effortless and comfortable. Here's the front and rear view of your advanced oven for future drying, analysis, or testing procedures.

1 - Rating label
2 - Fan
3 - Inner glass door
4 - Hole for ø30mm external probe
5 - Shelf
6 - Position of the condenser
7 - Lockable wheels
8 - Solid external door (optionally with window)
9 - Touch screen control panel
10 - USB port
11 - Door open sensor

1 - Main switch
2 - Power cord
3 - Connectors
4 - Tap water connection
5 - Connection to the reverse osmosis system
6 - Control valve
7 - Connection to demineralized water
8 - Drain connection
9 - Service help Connection
10 - LAN port
11 - Fuse

Your climatic chamber package also contains:

OPTIONAL UPGRADES

POL-EKO offers you the opportunity to upgrade your climatic chamber by adding premium accessories. This adapts the unit to unique applications and equips the instrument with state-of-the-art safety systems and connections.

• Door with panoramic window
• Stainless steel good grid
• Perforated shelf
• Reinforced shelf
• Stainless steel basins
• Internal socket
• IQ OQ PQ calibration and qualification
• UPS connecting for display power backup in case of electricity failure
• Clean contact
• LAN cable
• Non-standard 20/60/100 mm access door
• Additional 30 mm access door
• Access control system (card, key tag or NFC-enabled device, for example, smartphone)

◉ POL-EKO CLIENTELE

SPEKTROCHEM, a research and development center for paints, adhesives, and polymers, has been a faithful POL-EKO customer for numerous years. The climatic chambers are utilised for tests on water-based raw materials prepared in the laboratory.

INTERESTING TIDBIT?
Climatic chambers can aid in the creation of superb food products, such as black garlic, which needs to ferment at consistent temperatures and humidity levels. For further information, kindly download the informative pdf: Black Garlic with POL-EKO.
