Motic
Model
Motic SMZ-171
Supplier
Marshall Scientific
Location
Hampton - United States
Price
$1,095.00
(ex. VAT)
This item is
for sale
State of item
new
Categories

Motic SMZ-171-BP Stereo Microscope

Marshall Scientific$1,095.00 (ex VAT)
item image

Description by the supplier

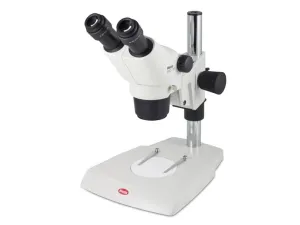

Motic SMZ-171-BP Stereo Microscope



Magnifaction Range

7.5x - 50x

Standard Working Distance

110mm

Optical System

Greenough



Features

- Stereo microscope

- Binocular head

- Greenough optical system

- 7.5x-50x standard magnification

- 110mm standard working distance

- Plain pole type stand

- Wide variety of options






The Motic SMZ-171-BP is a stereo microscope, featuring high quality Greenough optics. Designed for versatility, the SMZ-171-BP can be used in a variety of fields, from medical applications to industrial quality control. This rugged microscope is built to provide clear and distortion free images through many years of daily use.

In its standard configuration, the SMZ-171-BP has a working distance of 110mm, providing ample room for dissection instruments and sample manipulation. Working distance refers to the amount of space between the unit’s base and the unit’s objective, and is an important feature of any stereo microscope – the larger this number, the more room users have to operate.

Magnification is controlled by a zoom knob on the microscope’s side, enabling users to adjust between 7.5x and 50x in one continuous motion. The zoom knob also contains five indents, so that precise magnifications can be quickly and accurately repeated. This is especially important when taking measurements with micrometers, reticules, and processing software. Motic also offers a wide variety of optional objectives and eyepieces, greatly expanding the magnification range from 2.25x to 200x. Please see the chart below for all possible combinations and their corresponding optical performance.

The SMZ-171-BP is presented in a modular format and can be easily modified by the user. A large number of optional illumination sources, stands and filters are available, enabling users to customize the scope to suit their specific application. It is also available in both binocular and trinocular formats. Digital documentation of your work is made simple with any of Motic’s digital microscopy cameras – the Moticam. With over 20 models to choose from, these range from standard resolution, to research grade instruments with integrated cooling devices.INCLUDED:

The Motic SMZ-171-BP Stereo Microscope includes:

- Power Cord

- 10x Eye Piece

- Operator's Guide

- Manufacturer's Documentation

- 5 Year Manufacturer's Warranty

Product details
TypeMicroscope
Optical systemGreenough
Observation angle45° / 60º
Magnification range (standard)0.75X--5X
Total Magnification (Standard)7.5X - 50X
Zoom ratio1:6.7
EyepieceN-WF, high eye-point 10X(Ø23), Diopter adjustable interchangeable with biological eyepiecesN-WF 12.5X(Ø18), 15X(Ø16), 20X(Ø13) optional
Interpupilary adjustment48mm-75mm
Height of eye point405mm
Working distance (standard)110mm
Weight6.2 kg (head 1.4kg)
C-Mount adapterTrinocular head only 0.5X, 0.65X, 1X adapters available
Photo adapterSY10 photo adapter 2.5X, 4X photo eyepiece available
Auxiliary ESD objectives0.3X [WD = 301mm], 0.5X [WD = 191.8mm], 0.63X [WD = 142.7mm], 0.75X [WD = 128.6mm], 1.5X [WD = 56.3mm ], 2.0X [WD = 38.6mm]
Max. working distance301mm
Stand optionStable pole stand / arm base stand and plain stand available 3W LED incident and transmitted light with reflector design Improved design for various boom stands for industrial use
