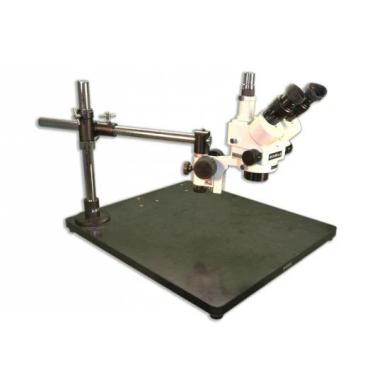

Meiji EMZ-5TR Trinocular Zoom Stereo Microscope with Wide Surface Laminated Stand
Product Description
-
Microscope Head (EMZ-5TR):
- Trinocular zoom body designed for photography and video; beamsplitter directs 100% left optical path light to phototube, right eyetube remains viewable.
- Greenough optical design for improved image flatness and contrast.
- Rugged cast aluminum alloy with 360° rotation.
- Zoom ratio: 6.5:1; zoom range: 0.7x–4.5x with graduated dual bilateral control.
- Magnification range with 10x eyepieces: 7x–45x; extended magnification 2.1x–270x with auxiliary lenses/eyepieces.
- Field of view: 32mm–5.1mm; working distance: 93mm (standard), extended 34mm–251mm optional.
- Objective lens: brass construction.
- Eyetube inclination: 45°.
- Interpupillary distance adjustable: 54mm–75mm.
- Dioptric adjustment: ±5 diopters dual adjustment.
- Auxiliary lenses (optional): 0.3x (252mm WD), 0.44x (181mm WD), 0.5x (150mm WD), 0.75x (97mm WD), 1.5x (49mm WD), 2x (34mm WD).
- Mounts to 84.5mm diameter focus holders.
-
Eyepieces (MA502):
- Super Widefield 10x pair, 25mm reticle mount, Field Number 23.0, eye relief 16.0mm, focal length 25.0mm, 30.5mm outer diameter.
-
Focus Block (F):
- Rack and pinion focusing with coarse focus incorporating slip clutch and tension adjustment.
- 55mm travel; fits 20mm diameter, 71mm long mounting post.
- Accepts all EM series stereo microscope bodies with 84.2mm diameter opening.
-
Stand (SBU):
- Wide surface laminated flat board, dimensions approximately 580mm x 500mm x 38mm (22 1/3" x 19 1/4").
- Universal ergonomic stand supporting large specimens or circuit boards.
- Pillar, crossarm, and mounting post for flexible horizontal/vertical movement.
- Requires external illumination (no built-in light source).
- Compatible with EMZ (zoom), EMT (turret), and EMF (fixed) series stereo bodies.
- Accepts optional holders (F, FX, FC) with 20mm mounting holes.
-
Modularity & Applications:
- Modular system enabling custom configuration with a wide selection of components.
- Multi-coated optics reduce chromatic and spherical aberrations; provide bright, flat, and high-contrast erect stereo images.
- All-metal, chemically resistant finish ensures stability and longevity.
- Ergonomic with multiple viewing tube inclinations (45°, 60°, 90°), interpupillary and diopter adjustments.
- Suitable for diverse fields including biological, industrial, educational, medical, veterinary, forensic, electronics, environmental, and more.
-
Included Accessories:
- Binocular body (EMZ-5 series)
- 10x MA502 eyepieces
- Wide surface SBU stand
- Meiji Techno dust cover (MA703)
- Rubber eyeguards (MA600)
- Instruction manual and limited lifetime warranty card
-
Additional info:
- Manufactured in Japan.
- Limited lifetime warranty provided.
