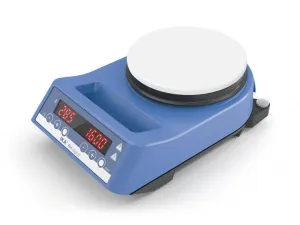

IKA RH Digital White Magnetic Hotplate Stirrer
Speed Range
100 to 2,000 RPM
Heating Temp. Range
50°C to 320°C
Stirring Quantity Max.
15 l
Features
- Digital display of temperature and speed
- Soft-start of stirring motor
- Strong magnetic field and wide speed range for volumes up to 15 liters
- Error code display
- Easy operation with touch keypad
The IKA RH Digital White Magnetic Hotplate Stirrer is an innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with the sensor placed directly in the medium. The high heat output of 600 watts and white ceramic heating plate ensure rapid heating and very good chemical resistance, with an adjustable safety temperature from 100 to 360 °C. The digital display shows both temperature and speed, with a strong magnetic field and wide speed range for volumes up to 15 liters. The device features a soft-start of the stirring motor, an error code display, and easy operation with a touch keypad, making it user-friendly and efficient.
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 15 l |
Motor rating output | 2 W |
Direction of rotation | left |
Speed display set-value | LED |
Speed control | Button |
Speed range | 100 - 2000 rpm |
Setting accuracy speed | 50 rpm |
Stirring bar length | 20 - 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 28 +K |
Heat output | 600 W |
Temperature display set-value | LED |
Temperature unit | °C |
Heating temperature range | 50 - 320 °C |
Heat control | Button |
Temperature setting range | 50 - 320 °C |
Heating rate heating plate | 6 K/min |
Connection for ext. temperature sensor | ETS-D5 |
Adjustable safety circuit | 100 - 360 °C |
Set-up plate material | technical enamel |
Set-up plate dimensions | Ø 135 mm |
Dimensions (W x H x D) | 160 x 100 x 250 mm |
Weight | 3.845 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 230 / 115 / 100 V |
Frequency | 50/60 Hz |
Power input | 620 W |
