IKA RH Digital Magnetic Hotplate Stirrer

Marshall Scientific$653.00 (ex VAT)
item image

Description by the supplier

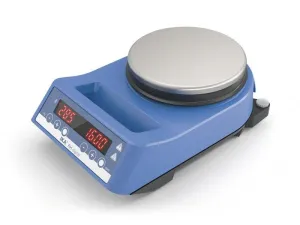

IKA RH Digital Magnetic Hotplate Stirrer



Stirring Quantity Max (H20)

15 L

Speed Range

100 - 2,000 rpm

Working Temperature

50 - 320 °C



Features

- Digital display of temperature and speed

- Soft-start of stirring motor

- Strong magnetic field and wide speed range for volumes up to 15 liters

- Error code display

- Easy operation with touch keypad






Innovatively designed digital magnetic stirrer with heating.Bushing according to DIN 12878 for connecting an electronic contactthermometer, such as the ETS-D5. Highly accurate temperature control ispossible with sensor placed directly in the medium. A high heat output of 600watts and stainless steel compound hot plate ensures rapid heating. Adjustablesafety temperature from 100 to 360 °C.

Product details
Number of stirring positions1
Stirring quantity max. per stirring position (H2O)15 l
Motor rating output2 W
Direction of rotationleft
Speed display set-valueLED
Speed controlButton
Speed range100 - 2000 rpm
Setting accuracy speed50 rpm
Stirring bar length20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)28 +K
Heat output600 W
Temperature display set-valueLED
Temperature unit°C
Heating temperature range50 - 320 °C
Heat controlButton
Temperature setting range50 - 320 °C
Heating rate heating plate6 K/min
Connection for ext. temperature sensorETS-D5
Adjustable safety circuit100 - 360 °C
Set-up plate materialstainless steel 1.4301
Set-up plate dimensionsØ 135 mm
Dimensions (W x H x D)160 x 100 x 250 mm
Weight3.845 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage230 / 115 / 100 V
Frequency50/60 Hz
Power input620 W
