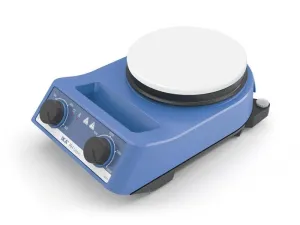

IKA RH Basic White Magnetic Hotplate Stirrer
Stirring Quantity Max. (H2O)
15 L
Speed Range
100 - 2000 rpm
Heating Temperature Range
50 - 320 °C
Features
- Economic magnetic stirrer with integrated heating up to 600 watts, ideal for rapid heating of solutions.
- Adjustable safety temperature range from 50 to 320 °C ensures precise temperature control and safety.
- Soft-start feature for gentle motor activation and prolonged stir bar life.
- Strong magnetic field and wide speed range (100 - 2000 rpm) suitable for volumes up to 15 liters.
- Includes three IKAFLON® magnetic stirring bars (20 mm, 30 mm, and 40 mm) and H 102 cover and protection handle.
Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 50 to 320 °C.
INCLUDED:
The IKA RH Basic White Magnetic Hotplate Stirrer includes:
- RH basic white
- IKAFLON® 20 Magnetic stirring bar
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
- H 102 Cover for RH basic
- H 102.1 Protection handle
- Screwdriver (use for safety circuit)
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer Warranty (+ Additional Free 1 Year Warranty Extension with IKA Registration)
IKA RH Basic White Magnetic Hotplate Stirrer Specifications Number of stirring positions1Stirring quantity max. per stirring position (H2O)15 lMotor rating output2 WDirection of rotationleftSpeed display set-valuescaleSpeed controlTurning knobSpeed range100 - 2000 rpmStirring bar length20 - 80 mmSelf-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)28 +KHeat output600 WTemperature display set-value scaleTemperature unit °CHeating temperature range 50 - 320 °CHeat controlscaleTemperature setting range0 - 320 °CConnection for ext. temperature sensorETS-D5Characteristics in the medium with temperature sensor1l M50 Oil at H1500Heating rate medium6 K/minAdjustable safety circuit100 - 360 °CSet-up plate materialtechnical enamelSet-up plate dimensionsØ 135 mmDimensions (W x H x D)160 x 100 x 250 mmWeight3.135 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 21Voltage230 / 115 / 100 VFrequency50/60 HzPower input620 W
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 15 l |
Motor rating output | 2 W |
Direction of rotation | left |
Speed display set-value | scale |
Speed control | Turning knob |
Speed range | 100 - 2000 rpm |
Stirring bar length | 20 - 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 28 +K |
Heat output | 600 W |
Temperature display set-value | scale |
Temperature unit | °C |
Heating temperature range | 50 - 320 °C |
Heat control | scale |
Temperature setting range | 0 - 320 °C |
Connection for ext. temperature sensor | ETS-D5 |
Characteristics in the medium with temperature sensor | 1l M50 Oil at H1500 |
Heating rate medium | 6 K/min |
Adjustable safety circuit | 100 - 360 °C |
Set-up plate material | technical enamel |
Set-up plate dimensions | Ø 135 mm |
Dimensions (W x H x D) | 160 x 100 x 250 mm |
Weight | 3.135 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 230 / 115 / 100 V |
Frequency | 50/60 Hz |
Power input | 620 W |
