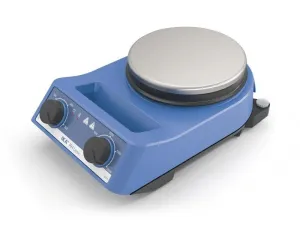

IKA RH Basic Magnetic Hotplate Stirrer

Marshall Scientific$593.00 (ex VAT)
item image

Description by the supplier

Stirring Quantity Max. (H2O)

15 L

Speed Range

0 - 2000 rpm

Heating Temperature Range

50 - 320 °C

Features

- Economic magnetic stirrer with integrated heating up to 600 watts, ideal for rapid heating of solutions.

- Adjustable safety temperature range from 50 to 320 °C ensures precise temperature control and safety.

- Soft-start feature for gentle motor activation and prolonged stir bar life.

- Strong magnetic field and wide speed range (100 - 2000 rpm) suitable for volumes up to 15 liters.

- Includes three IKAFLON® magnetic stirring bars (20 mm, 30 mm, and 40 mm) and H 102 cover and protection handle.



IKA RH Basic Magnetic Hotplate Stirrer Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 50 to 320 °C.






INCLUDED:

The IKA RH Basic Magnetic Hotplate Stirrer includes:

- RH basic

- IKAFLON® 20 Magnetic stirring bar

- IKAFLON® 30 Magnetic stirring bar

- IKAFLON® 40 Magnetic stirring bar

- H 102 Cover for RH basic

- H 102.1 Protection handle

- Screwdriver (use for safety circuit)

- Power Cord

- Operator's Guide

- Manufacturer's Documentation

- 2 Year Manufacturer Warranty (+ Additional Free 1 Year Warranty Extension with IKA Registration)




IKA RH Basic Magnetic Hotplate Stirrer Specifications Number of stirring positions1Stirring quantity max. per stirring position (H2O)15 lMotor rating output2 WDirection of rotationleftSpeed display set-valuescaleSpeed controlTurning knobSpeed range100 - 2000 rpmStirring bar length20 - 80 mmSelf-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)28 +KHeat output600 WTemperature display set-valuescaleTemperature unit°CHeating temperature range50 - 320 °CHeat controlscaleTemperature setting range0 - 320 °CConnection for ext. temperature sensorETS-D5 Characteristics in the medium with temperature sensor1l M50 Oil at H1500 Heating rate medium6 K/min Adjustable safety circuit100 - 360 °CSet-up plate materialstainless steel 1.4301Set-up plate dimensionsØ 135 mmDimensions (W x H x D)160 x 100 x 250 mmWeight3.135 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 21Voltage230 / 115 / 100 VFrequency50/60 HzPower input620 W

Product details
Number of stirring positions1
Stirring quantity max. per stirring position (H2O)15 l
Motor rating output2 W
Direction of rotationleft
Speed display set-valuescale
Speed controlTurning knob
Speed range100 - 2000 rpm
Stirring bar length20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)28 +K
Heat output600 W
Temperature display set-valuescale
Temperature unit°C
Heating temperature range50 - 320 °C
Heat controlscale
Temperature setting range0 - 320 °C
Connection for ext. temperature sensorETS-D5
Characteristics in the medium with temperature sensor1l M50 Oil at H1500
Heating rate medium6 K/min
Adjustable safety circuit100 - 360 °C
Set-up plate materialstainless steel 1.4301
Set-up plate dimensionsØ 135 mm
Dimensions (W x H x D)160 x 100 x 250 mm
Weight3.135 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage230 / 115 / 100 V
Frequency50/60 Hz
Power input620 W
