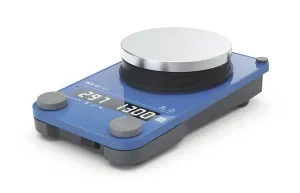

IKA RCT Basic Magnetic Hotplate Stirrer
Speed Range
50 - 1500 rpm
Temperature Setting Range
0 - 310 °C
Heat Output
600 Watts
Features
- Tempered shatterproof glass surface for optimal chemical resistance and easy cleaning
- Largest display in its class with easy-to-read LED display
- Illuminated symbols for displaying important status information (set and actual temperature, heating status, temperature sensor
- USB and RS232 interface for control or documentation of the test parameters via a PC
- Compatible with Labworldsoft® laboratory software
- QR code for quick access to device information, accessories, downloads and extended warranty
- Easily accessible main switch on the front of the device
For almost half a century, the RCT Basic Magnetic Hotplate Stirrer has not only been IKA’s bestseller, but also the standard in a reference device in laboratories and research facilities worldwide. The RCT Basic Magnetic Hotplate Stirrer stands for reliability, exceptionally long product lifetimes and the highest safety standards. The RCT Basic is suitable for stirring tasks up to 20L (H2O) and reaches a hotplate temperature of up to 310°C. With the connection option for an external temperature sensor (PT 1000.60 included in delivery), the temperature can be measured and controlled directly in the reaction medium. Thanks to perfect insulation of the aluminum heating plate, maintenance-free EC motor and electronic switching power supply, RCT basic features excellent energy efficiency as well as reduced self-heating of the heating plate during stirring operation, thus contributing to a more sustainable laboratory.
In the latest generation, RCT Basic presents itself in proven quality and with numerous new features:
Click Here to View Product Video
INCLUDED:
The IKA RCT Basic Magnetic Hotplate Stirrer includes:
- IKAFLON 30 Magnetic Stirring Bar
- IKAFLON 40 Magnetic Stirring Bar
- PT 1000.60 Temperature Sensor, Stainless Steel
- Screw Driver
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer's Warranty
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 20 l |
Motor rating output | 9 W |
Direction of rotation | right |
Speed display set-value | LED |
Speed display actual-value | LED |
Speed adjustment | Turning knob |
Speed range | 50 - 1500 rpm |
Setting accuracy speed | 10 rpm |
Stirring bar length | 20 - 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +13 K |
Heat output | 600 W |
Temperature display set-value | LED |
Temperature display actual-value | LED |
Temperature unit | °C |
Heating temperature range | Room temp. + device self heating - 310 °C |
Heat control | Turning knob |
Temperature setting range | 0 - 310 °C |
Temperature setting resolution of heating plate | 1 K |
Connection for ext. temperature sensor | PT1000, ETS-D5, ETS-D6 |
Heating rate medium | 6.5 K/min |
Temperature setting resolution of medium | 1 K |
Adjustable safety circuit | 50 - 360 °C |
Set-up plate material | Aluminium alloy |
Set-up plate dimensions | Ø 135 mm |
Sensor in medium detection (Error 5) | yes |
Temperature measure range PT1000 | -20 - 310 °C |
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | ±2 % |
Heating rate (1l H2O in H1500) | 6.5 K/min |
Heat control accuracy of heating plate (at 100°C) | ±5 K |
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±1 K |
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±0.5 K |
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±0.2 K |
Dimensions (W x H x D) | 160 x 85 x 270 mm |
Weight | 2.4 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 42 |
RS 232 interface | yes |
USB interface | yes |
Voltage | 115 V |
Frequency | 50/60 Hz |
Power input | 650 W |
Power input standby | 1.6 W |
