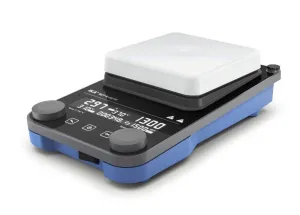

IKA RCT 5 Digital Magnetic Hotplate Stirrer
Speed Range
50 - 1500 rpm
Temperature Setting Range
0 - 310 °C
Heat Output
850 Watts
Features
- The new magnetic stirrer RCT 5 digital boasts 850 W of power, ideal for demanding stirring tasks up to 20 liters.
- Features a multifunctional menu for customized stirring operations.
- Enables programming of rotation direction, timer functions, and sequence programming for a tailored stirring process from start to finish.
- Equipped with a scratch-resistant ceramic coating on a rectangular set-up plate, offering enhanced durability compared to conventional magnetic stirrer plates.
- Employs a display made of chemical resistant and hardened glass for increased user safety.
- Enhanced safety with a display symbol warning of hot surface, alongside an adjustable safety circuit up to 370 °C.
The new magnetic stirrer RCT 5 digital with 850 W offers significantly more power making it an ideal device for demanding stirring tasks up to 20 l.Multifunctional menu
- Whether determining the direction of rotation, timer functions or sequence programming - the stirring process can be programmed individually from beginning to end. In this way, the reaction runs reliably and safely even without monitoring.
Scratch-resistant ceramic coating
- RCT 5 digital has a rectangular set-up plate with a white, ceramic coating. It is less scratch-prone than conventional magnetic stirrer plates.
Safety features
- The display is made of chemical resistant and hardened glass which increases the safety of the user. In addition, a symbol in the display warns in case of a hot surface and therefore protects from burnings. The safety circuit can be adjusted up to 370 °C.
INCLUDED:
The IKA RCT 5 Digital Magnetic Hotplate Stirrer includes:
- RCT 5 digital
- PT 1000.60 Temperature sensor, stainless steel
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
- Screw driver
- USB cable
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer Warranty (+ Additional Free 8 Year Warranty Extension with IKA Registration)
IKA RCT 5 Digital Magnetic Hotplate Stirrer Specifications Number of stirring positions1Stirring quantity max. per stirring position (H2O)20 lMotor rating output9 WDirection of rotationright / leftSpeed display set-valueLCDSpeed display actual-valueLCDSpeed controlTurning knobSpeed range50 - 1500 rpmSetting accuracy speed 10 rpmStirring bar length 30 - 80 mmSelf-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) 13 +KHeat output850 WTemperature display set-valueLCDTemperature display actual-valueLCDTemperature unit°C / °FHeating temperature rangeRoom temp. + device self heating - 310 °CHeat controlTurning knobTemperature setting range0 - 310 °CTemperature setting resolution of heating plate1 KConnection for ext. temperature sensorPT1000, ETS-D5, ETS-D6Temperature setting resolution of medium1 KAdjustable safety circuit50 - 370 °CSet-up plate materialAluminum with ceramic coatingSet-up plate dimensions137 x 137 mmAutomatic reverse rotationyesIntermittent modeyesViscosity trend measurementyesTimeryesTimer displayLCDTime setting min.1 sTime setting max.143940 minSensor in medium detection (Error 5)yesSpeed deviation (no load,nominal voltage, at 1500rpm + 25 °C)2 ±%Heating rate (1l H2O in H1500)7.5 K/minHeat control accuracy of heating plate (at 100°C)5 ±KHeat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)0.5 ±KHeat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)0.5 ±KHeat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)0.2 ±KDimensions (W x H x D)160 x 85 x 270 mmWeight2.6 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 42RS 232 interfaceyesUSB interfaceyesVoltage 115 VFrequency50/60 HzPower input900 WPower input standby1.6 W
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 20 l |
Motor rating output | 9 W |
Direction of rotation | right / left |
Speed display set-value | LCD |
Speed display actual-value | LCD |
Speed control | Turning knob |
Speed range | 50 - 1500 rpm |
Setting accuracy speed | 10 rpm |
Stirring bar length | 30 - 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 13 +K |
Heat output | 850 W |
Temperature display set-value | LCD |
Temperature display actual-value | LCD |
Temperature unit | °C / °F |
Heating temperature range | Room temp. + device self heating - 310 °C |
Heat control | Turning knob |
Temperature setting range | 0 - 310 °C |
Temperature setting resolution of heating plate | 1 K |
Connection for ext. temperature sensor | PT1000, ETS-D5, ETS-D6 |
Temperature setting resolution of medium | 1 K |
Adjustable safety circuit | 50 - 370 °C |
Set-up plate material | Aluminum with ceramic coating |
Set-up plate dimensions | 137 x 137 mm |
Automatic reverse rotation | yes |
Intermittent mode | yes |
Viscosity trend measurement | yes |
Timer | yes |
Timer display | LCD |
Time setting min. | 1 s |
Time setting max. | 143940 min |
Sensor in medium detection (Error 5) | yes |
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | 2 ±% |
Heating rate (1l H2O in H1500) | 7.5 K/min |
Heat control accuracy of heating plate (at 100°C) | 5 ±K |
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.5 ±K |
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.5 ±K |
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.2 ±K |
Dimensions (W x H x D) | 160 x 85 x 270 mm |
Weight | 2.6 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 42 |
RS 232 interface | yes |
USB interface | yes |
Voltage | 115 V |
Frequency | 50/60 Hz |
Power input | 900 W |
Power input standby | 1.6 W |
