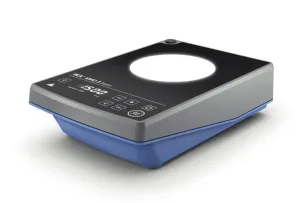

IKA KMO 3 Basic Magnetic Stirrer
Stirring quantity max. per stirring position (H2O)
5 l
Speed Range
10 - 1500 rpm
Setting Accuracy Speed
10 rpm
Features
- Unique design with glass surface
- Brilliant, clear white display
- Illuminated, flat stirring plate
- Key-lock button
- Reverse rotation
- Integrated USB interface (control via labworldsoft and use of Firmware Update Tool)
- Recessed thread for support rod
- Protection class IP42
The award-winning KMO 3 basic is a small but powerful magnetic stirrer without heating function. It provides:
INCLUDED:
The IKA KMO 3 Basic Magnetic Stirrer includes:
- KMO 3 basic
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
- USB cable
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer Warranty ( + Additional Free 1 Year Warranty Extension with IKA Registration)
IKA KMO 3 Basic Magnetic Stirrer Specifications Number of stirring positions1Stirring quantity max. per stirring position (H2O)5 lMotor rating output9 WDirection of rotationright / leftSpeed display set-valueLEDSpeed controlTouch keySpeed range10 - 1500 rpmSetting accuracy speed10 rpmStirring bar length20 - 80 mmSelf-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) 2 +KSet-up plate material glassSet-up plate dimensions140 x 120 mmAutomatic reverse rotationyesSet-up plate illuminatedyesIllumination level max.15000 lxSpeed deviation (no load,nominal voltage, at 1500rpm + 25 °C)2 ±%Dimensions (W x H x D) 153 x 62.5 x 227 mmWeight1.471 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 42USB interfaceyesVoltage100 - 240 VFrequency50/60 HzPower input13 WPower input standby0.8 WDC Voltage24 V=Current consumption500 mA
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 5 l |
Motor rating output | 9 W |
Direction of rotation | right / left |
Speed display set-value | LED |
Speed control | Touch key |
Speed range | 10 - 1500 rpm |
Setting accuracy speed | 10 rpm |
Stirring bar length | 20 - 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 2 +K |
Set-up plate material | glass |
Set-up plate dimensions | 140 x 120 mm |
Automatic reverse rotation | yes |
Set-up plate illuminated | yes |
Illumination level max. | 15000 lx |
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | 2 ±% |
Dimensions (W x H x D) | 153 x 62.5 x 227 mm |
Weight | 1.471 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 42 |
USB interface | yes |
Voltage | 100 - 240 V |
Frequency | 50/60 Hz |
Power input | 13 W |
Power input standby | 0.8 W |
DC Voltage | 24 V= |
Current consumption | 500 mA |
