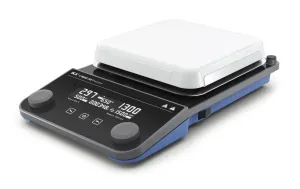

IKA C-MAG HS 7 Control Magnetic Hotplate Stirrer
Speed Range
50-1500 RPM
Setting Accuracy Speed
10 rpm
Heat Output
1000 W
Features
- The IKA C-Mag HS 7 control features a durable ceramic square top, suitable for stirring up to 20l (H2O) at speeds from 50 to 1500rpm, ensuring versatility.
- With a lifetime warranty, IKA stands firmly behind its C-Mag HS 7 control, allowing scientists to focus on their research without concerns about reliability.
- Regular firmware updates ensure the C-Mag HS 7 control remains cutting-edge, enhancing its functionality and reliability for sensitive experiments.
- The package includes the PT 1000.60 temperature sensor and IKAFLON® magnetic stirring bars, providing a comprehensive solution for various stirring needs.
- Featuring an LCD for accurate speed and temperature control, the C-Mag HS 7 control offers precise settings to meet the demands of any experiment.
- The IKA SmartTemp® function offers intelligent protection, ensuring safe operation by adapting to the user’s needs and experiment parameters.
- Accessories such as a screwdriver, USB cable, and power cord are included, along with a 2-year manufacturer warranty, highlighting IKA’s commitment to quality.
The IKA C-Mag HS 7 control has a square top made of ceramic. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm. IKA’s stands strongly by its product and technology and is offering a lifetime warranty for this product – scientists can focus on their experiments using a reliable hotplate stirrer. IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The C-Mag HS 7 control improves over time with regular firmware updates – control of kinetics and sensitive reactions are supported by the integrated timer and counter function – the IKA SmartTemp® function protects user intelligently. PT1000 temperature sensor included.
Click Here to View Product Video
INCLUDED:
The IKA C-MAG HS 7 Control Magnetic Hotplate Stirrer includes:
- C-MAG HS 7 control
- PT 1000.60 Temperature sensor, stainless steel
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
- Screw driver
- USB cable
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer Warranty (+ Additional Free 8 Year Warranty Extension with IKA Registration)
IKA C-MAG HS 7 Control Magnetic Hotplate Stirrer Specifications Number of stirring positions1Stirring quantity max. per stirring position (H2O)20 lMotor rating output9 WDirection of rotationright / leftSpeed display set-valueLCDSpeed display actual-valueLCDSpeed controlTurning knobSpeed range50 - 1500 rpmSetting accuracy speed10 rpm Stirring bar length30 - 80 mm Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)1 +K Heat output1000 WTemperature display set-valueLCDTemperature display actual-valueLCDTemperature unit°CHeating temperature rangeroom temp. - 500 °CHeat controlTurning knobDisplay resolution1 KTemperature setting range0 - 500 °CTemperature setting resolution of heating plate5 KConnection for ext. temperature sensorPT1000, ETS-D5, ETS-D6Temperature setting resolution of medium1 KAdjustable safety circuit100 - 650 °CSet-up plate materialceramicSet-up plate dimensions180 x 180 mmAutomatic reverse rotationyesIntermittent modeyesViscosity trend measurementyesTimeryesTimer displayLCDTime setting min.1 sTime setting max.143940 minSensor in medium detection (Error 5)yesTemperature measure range PT1000-10 - 350 °CSpeed deviation (no load,nominal voltage, at 1500rpm + 25 °C)2 ±%Heating rate (1l H2O in H1500)5 K/minHeat control accuracy of heating plate (at 100°C)5 ±KHeat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)0.5 ±KHeat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)0.5 ±KHeat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)0.2 ±KDimensions (W x H x D)220 x 88 x 354 mmWeight4 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 21RS 232 interfaceyesUSB interfaceyesVoltage220 - 230 / 115 / 100 VFrequency50/60 HzPower input1020 WPower input standby2 WComparison of ModelsSpecificationsC-MAG HS 10 DigitalC-MAG HS 10C-MAG HS 4 DigitalC-MAG HS 4C-MAG HS 7 ControlC-MAG HS 7 Control PackageC-MAG HS 7 DigitalC-MAG HS 7C-MAG HS 7 PackageTemperature Range (°C)50 to 50050 to 50050 to 50050 to 500Ambient to 500Ambient to 50050 to 50050 to 50050 to 500Speed Range (RPM)100 to 1,500100 to 1,500100 to 1,500100 to 1,50050 to 1,50050 to 1,500100 to 1,500100 to 1,500100 to 1,500Heat Output (W)1500150025025010001000100010001000Platform Dimensions (mm)260 x 260260 x 260100 x 100100 x 100180 x 180180 x 180180 x 180180 x 180180 x 180Dimensions (W x H x D) (mm)300 x 105 x 415300 x 105 x 415150 x 105 x 260150 x 105 x 260220 x 88 x 354220 x 88 x 354215 x 105 x 330220 x 105 x 335220 x 105 x 335.comparison-table tr td:nth-child(6) { background-color: #fffacd; }
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 20 l |
Motor rating output | 9 W |
Direction of rotation | right / left |
Speed display set-value | LCD |
Speed display actual-value | LCD |
Speed control | Turning knob |
Speed range | 50 - 1500 rpm |
Setting accuracy speed | 10 rpm |
Stirring bar length | 30 - 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 1 +K |
Heat output | 1000 W |
Temperature display set-value | LCD |
Temperature display actual-value | LCD |
Temperature unit | °C |
Heating temperature range | room temp. - 500 °C |
Heat control | Turning knob |
Display resolution | 1 K |
Temperature setting range | 0 - 500 °C |
Temperature setting resolution of heating plate | 5 K |
Connection for ext. temperature sensor | PT1000, ETS-D5, ETS-D6 |
Temperature setting resolution of medium | 1 K |
Adjustable safety circuit | 100 - 650 °C |
Set-up plate material | ceramic |
Set-up plate dimensions | 180 x 180 mm |
Automatic reverse rotation | yes |
Intermittent mode | yes |
Viscosity trend measurement | yes |
Timer | yes |
Timer display | LCD |
Time setting min. | 1 s |
Time setting max. | 143940 min |
Sensor in medium detection (Error 5) | yes |
Temperature measure range PT1000 | -10 - 350 °C |
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | 2 ±% |
Heating rate (1l H2O in H1500) | 5 K/min |
Heat control accuracy of heating plate (at 100°C) | 5 ±K |
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.5 ±K |
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.5 ±K |
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.2 ±K |
Dimensions (W x H x D) | 220 x 88 x 354 mm |
Weight | 4 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
RS 232 interface | yes |
USB interface | yes |
Voltage | 220 - 230 / 115 / 100 V |
Frequency | 50/60 Hz |
Power input | 1020 W |
Power input standby | 2 W |
